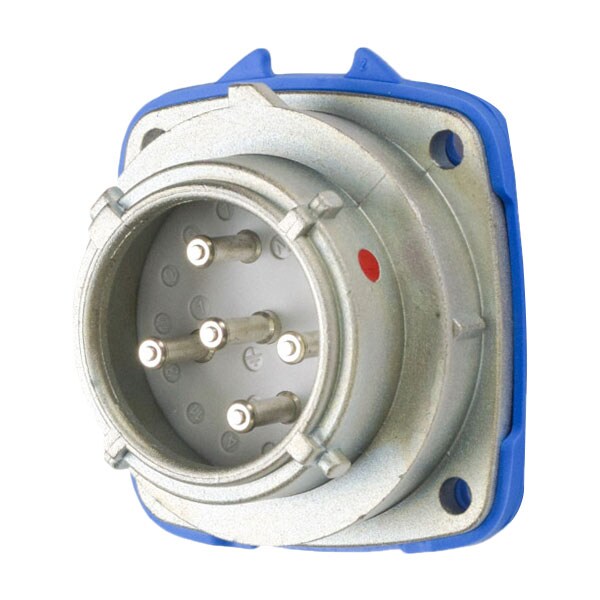

El receptáculo de espiga y enchufe Meltric de 20 A y 120/208V AC, cumple con la norma NEMA 4X para entornos húmedos y corrosivos, ofreciendo seguridad y confiabilidad en aplicaciones industriales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 120/208V AC |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Metal |
| Standards | cCSAus, C22.2 No. 182.1-07, UL 1682 |
| Voltage | 120/208V AC |
| Body Material | Zamak |
| Use With | Mating Box MB3 |
| NEMA Rating | 4X |
| Use With Installation Accessory Size | 1 |
| Keying Position | 16 |
| Operating Temp. Range | -40C to 60C |
| Wire Strip Length | Phase: 3/8 in |
| Impact Rating | IK09 |
| Wire Size | 14 AWG to 8 AWG |
| Contact Configuration | 3P+N+G |
| Terminal Type | Screw terminal |
| Tightening Torque | Phase: 8 IN-LBS / 0.9 N-M |
| Color Code | Blue |
| Package Quantity | 1 |
