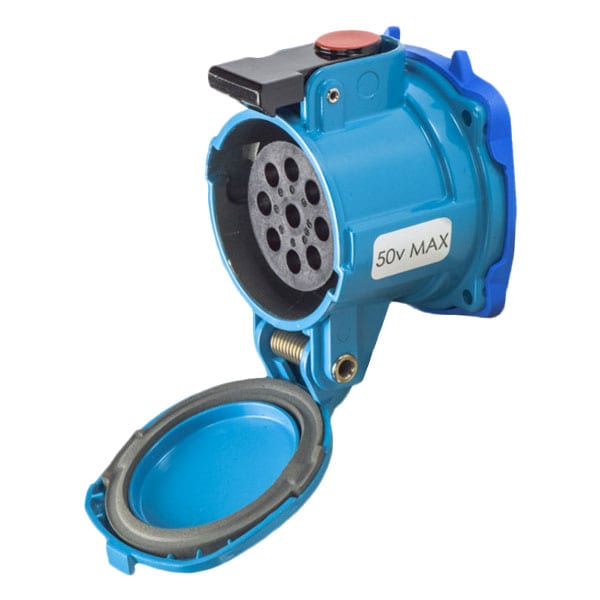

El receptáculo Pin & Sleeve de Meltric es ideal para aplicaciones con corriente de 20 A y voltaje de 50V AC. Con 3 polos para garantizar una conexión segura y confiable.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 50V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP66 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 94.2-15, C22.2 No. 182.1-13 |
| Voltage | 50V |
| Use With | Mating Box MB3 |
| Body Material | Zamak |
| Hz | 60 Hz |
| Number of Notch Positions | 2 |
| Wire Strip Length | Phase: 1/2 in |
| Color Code | Blue |
| Use With Installation Accessory Size | 3 |
| Wire Size | 16 AWG to 10 AWG |
| Contact Configuration | 9P |
| Tightening Torque | Phase: 4.50 IN-LBS / 0.5 N-M |
| Short Circuit Current Rating | 10 KA - WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Keying Position | 1 |
| Impact Rating | IK09 |
| Package Quantity | 1 |
