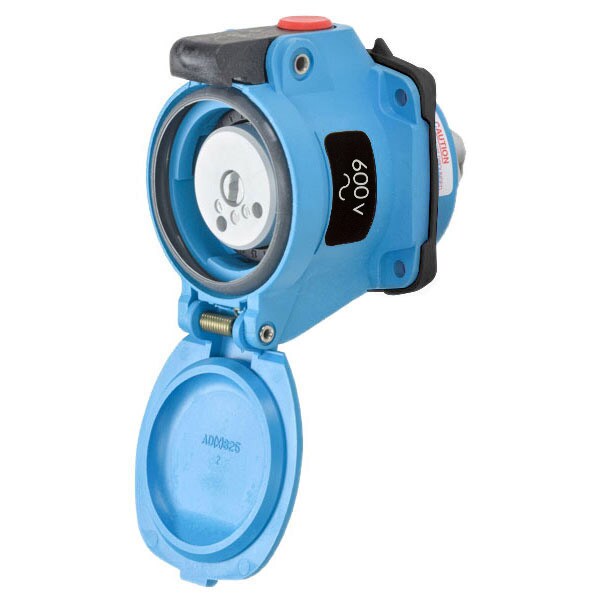

Este receptáculo de clavija y enchufe Meltric está diseñado para ofrecer una conexión segura y confiable de 20 A a 600V CA. Con 2 polos y clasificación NEMA 4X, es ideal para entornos industriales y comerciales exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 600V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| Resistance Properties | Corrosion Resistant, UV AC/Sunlight Resistant, Watertight |
| NEMA Rating | 4X |
| Use With | Mating Box MB3 |
| HP | 3 |
| Voltage | 600V AC |
| Body Material | Polyester |
| Tightening Torque | Phase: 10.6 IN-LBS / 1.2 N-M |
| Number of Aux. Outputs | NO AUX |
| Wire Temperature Rating | 60 deg C |
| Wire Strip Length | Phase: 1/2 in |
| Keying Position | 14 |
| Terminal Type | Screw terminal |
| Use With Installation Accessory Size | 1 |
| Number of Notch Positions | 23 |
| Impact Rating | IK08 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Load Break Amp Rating | 20 A |
| Contact Configuration | 2 P+G |
| Wire Size | 14 AWG to 12 AWG |
| Hz | 60 Hz |
| Operating Temp. Range | -40C to 60C |
| Color Code | Black |
| Load Break Amp Rating_Abnormal Overload | 30 A |
| Package Quantity | 1 |
