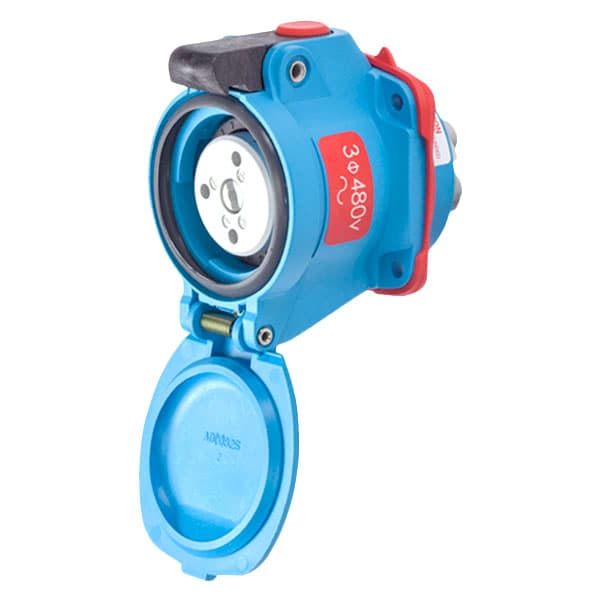

Este receptáculo de clavija y enchufe de Meltric es ideal para aplicaciones industriales. Con una capacidad de 20 A y 600V AC, cuenta con 3 polos y cumple con la normativa NEMA 4X para garantizar su resistencia en entornos adversos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | UL/CSA, UL 498 |
| Voltage | 480V AC |
| Body Material | Polyester |
| HP | 7-1/2 |
| Wire Size | 14 AWG to 12 AWG |
| Terminal Type | Screw terminal |
| Keying Position | 4 |
| Load Break Amp Rating | 20 A |
| Number of Notch Positions | 23 |
| Number of Aux. Outputs | NO AUX |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Tightening Torque | Phase: 10.6 IN-LBS / 1.2 N-M |
| Contact Configuration | 3 P+G |
| Wire Strip Length | Phase: 1/2 in |
| Wire Temperature Rating | 60 deg C |
| Hz | 60 Hz |
| Color Code | Red |
| Use With Installation Accessory Size | 1 |
| Impact Rating | IK08 |
| Load Break Amp Rating_Abnormal Overload | 30 A |
| Series | DSN20 |
| Horsepower | 5 |
| Dimensions | 3.03 in H x 2.2 in W x 3.15 in D |
| Temperature Rating | -40 to 140 °F |
| Enclosure | IP66, IP67, IP69k |
| Package Quantity | 1 |
