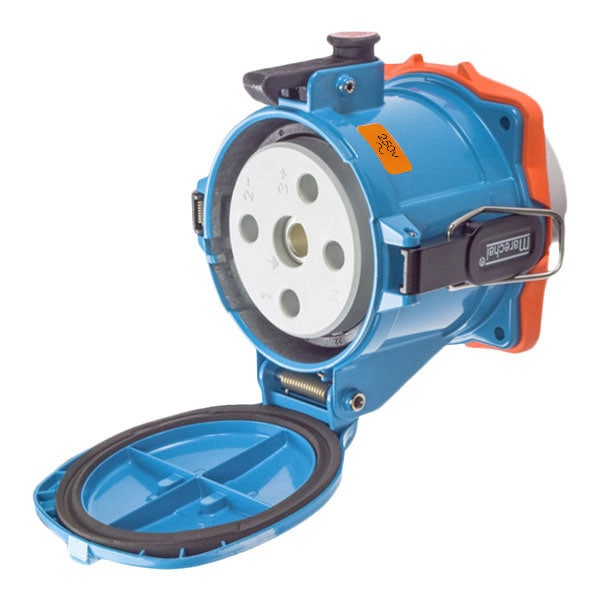

El receptáculo de clavija y enchufe Meltric ofrece una conexión segura y confiable para corriente de 200 A a 250V AC. Con estilo 2 de puesta a tierra y clasificación NEMA 3R, es ideal para aplicaciones industriales y comerciales.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 200 A |
| Voltage Rating | 250V AC |
| IP Rating | IP55 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Flange Type | Flanged |
| Grounding Style | Style 2 |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| NEMA Rating | 3R |
| Body Material | Zamak |
| Use With | Mating Box MB20 |
| Voltage | 250V AC |
| Impact Rating | IK09 |
| Wire Temperature Rating | 60 deg C |
| Keying Position | 7 |
| Hz | 60 Hz |
| Contact Configuration | 2 P+G |
| Load Break Amp Rating | 200 A |
| Color Code | Orange |
| Operating Temp. Range | -40C to 60C |
| Number of Notch Positions | 12 |
| Short Circuit Current Rating | 10 KA - MAKE & WITHSTAND |
| Number of Aux. Outputs | NO AUX |
| Use With Installation Accessory Size | 6 |
| Tightening Torque | Phase: 110 IN-LBS / 12.4 N-M |
| Wire Size | 4 AWG to 4/0 AWG |
| Wire Strip Length | Phase: 1-1/2 in |
| Terminal Type | Screw terminal |
| Load Break Amp Rating_Abnormal Overload | 300 A |
| Package Quantity | 1 |
