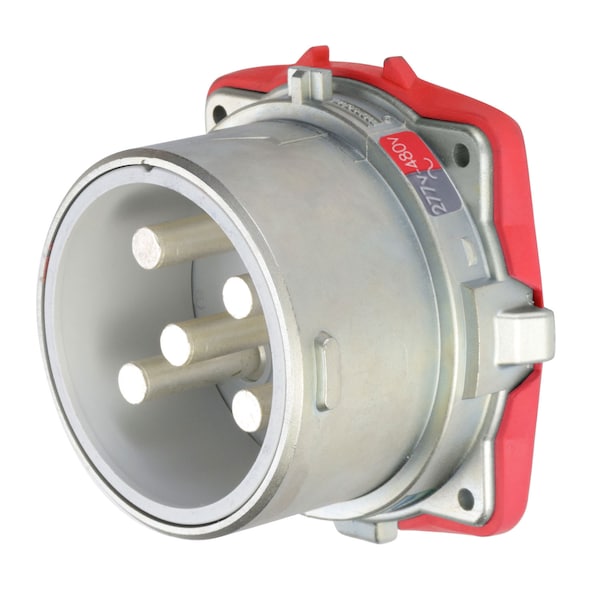

Este receptáculo de clavija y enchufe de 200 A y 255/480V AC es ideal para aplicaciones industriales. Con 4 polos y certificación NEMA 3R, garantiza un alto nivel de seguridad y confiabilidad.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 200 A |
| Voltage Rating | 255/480V AC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| IP Rating | IP54 |
| NEMA Enclosure Rating | 3R |
| Housing Color | Metal |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| Material | Metal |
| Voltage | 277/480V AC |
| HP | 100 |
| Body Material | Zamak |
| Use With | Mating Box MB20 |
| Short Circuit Current Rating | 10 KA - MAKE & WITHSTAND |
| Load Break Amp Rating | 200 A |
| Keying Position | 4 |
| Wire Strip Length | Phase: 1-1/2 in |
| Color Code | Red |
| Tightening Torque | Phase: 110 IN-LBS / 12.4 N-M |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 6 |
| Impact Rating | IK09 |
| Terminal Type | Screw terminal |
| Operating Temp. Range | -40C to 60C |
| Contact Configuration | 3P+N+G |
| Wire Size | 4 AWG to 4/0 AWG |
| Hz | 60 Hz |
| Number of Aux. Outputs | NO AUX |
| Number of Notch Positions | 12 |
| Load Break Amp Rating_Abnormal Overload | 300 A |
| Dimensions | 5.59 in H x 5.75 in W x 4.69 in D |
| Enclosure | IP55, IP54 |
| Temperature Rating | -40 to 140 °F |
| Series | DS200 |
| Package Quantity | 1 |
