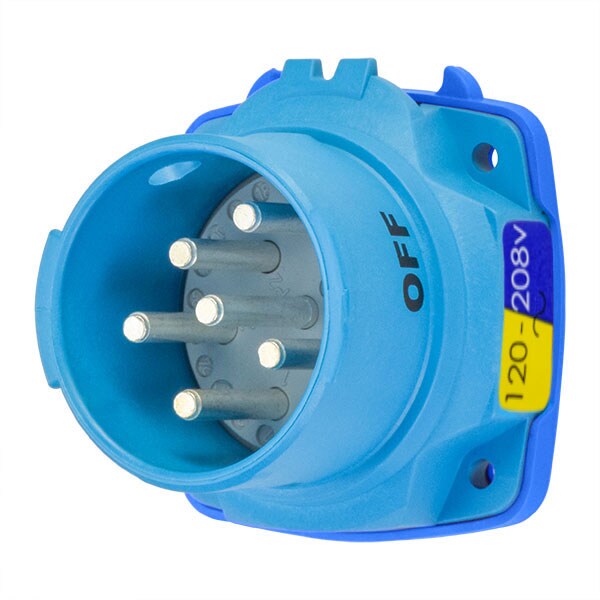

Toma de clavija y enchufe de 30 A, 120/208V AC, 2 Polos, NEMA 4X para aplicaciones industriales y comerciales. Resistente y seguro para conexiones eléctricas.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP67, IP66, IP69 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508 |
| Resistance Properties | Corrosion Resistant, UV AC/Sunlight Resistant, Watertight |
| NEMA Rating | 4X |
| Voltage | 120/208V AC |
| Use With | Mating Box MB3 |
| HP | 2 |
| Body Material | Polyester |
| Color Code | Blue |
| Number of Aux. Outputs | +2 AUX |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Auxiliary Contact Voltage Rating | 600VAC |
| Number of Notch Positions | 24 |
| Load Break Amp Rating | 30 A |
| Use With Installation Accessory Size | 2 |
| Auxiliary Contact Rating | 1.2 A |
| Contact Configuration | 2P+N+G |
| Keying Position | 16 |
| Terminal Type | Screw terminal |
| Wire Size | 14 AWG to 14 AWG; 14 AWG to 8 AWG |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Wire Temperature Rating | 60 deg C |
| Terminal Connection | Screw |
| Wire Strip Length | Phase: 3/4 in, Auxiliary: 3/4 in |
| Impact Rating | IK08 |
| Operating Temp. Range | -40C to 60C |
| Hz | 60 Hz |
| Load Break Amp Rating_Abnormal Overload | 45 A |
| Package Quantity | 1 |
