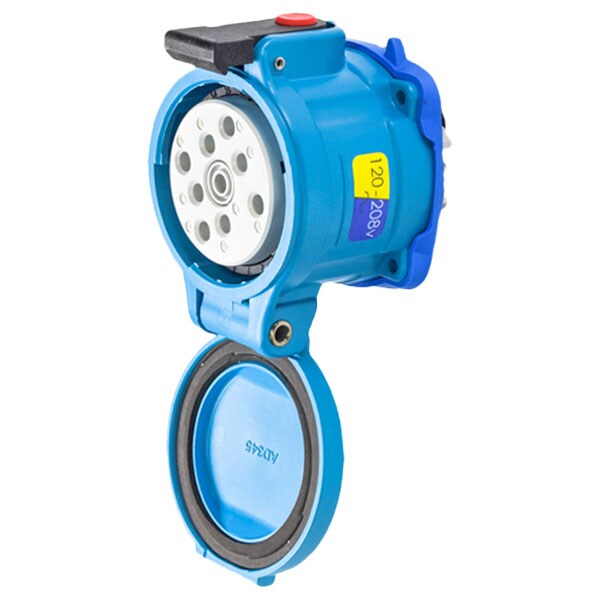

Este receptáculo de clavija y enchufe Meltric está diseñado para 30 A y 120/208V AC, cuenta con 3 polos y cumple con la clasificación NEMA 3R para aplicaciones en exteriores.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP55 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 1-1/2, 5 |
| NEMA Rating | 3R |
| Voltage | 120/208V AC |
| Body Material | Polyester |
| Operating Temp. Range | -40C to 60C |
| Wire Strip Length | Phase: 3/4 in |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Color Code | Blue |
| Wire Temperature Rating | 60 deg C |
| Keying Position | 16 |
| Auxiliary Contact Voltage Rating | 600VAC |
| Number of Aux. Outputs | +4 AUX |
| Use With Installation Accessory Size | 3 |
| Wire Size | 14 AWG to 4 AWG |
| Contact Configuration | 3P+N+G |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Terminal Type | Screw terminal |
| Auxiliary Contact Rating | 1.2 A |
| Load Break Amp Rating | 45 A |
| Package Quantity | 1 |
