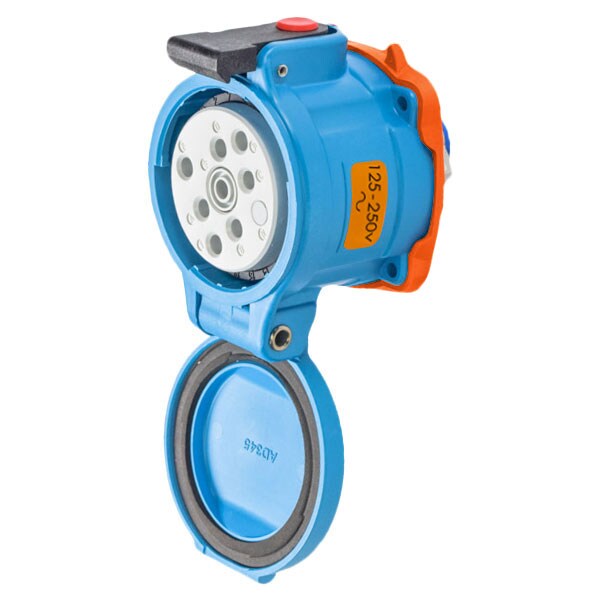

Este receptáculo de clavija y toma de 30 A y 125/250V CA, cumple con los estándares NEMA 3R para uso en exteriores. Fabricado por Meltric, garantiza seguridad y confiabilidad en la conexión de equipos eléctricos.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125/250V AC |
| Number of Wires | 4 |
| IP Rating | IP55 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| HP | 1-1/2, 3 |
| Body Material | Polyester |
| Voltage | 125/250V AC |
| NEMA Rating | 3R |
| Color Code | Orange |
| Operating Temp. Range | -40C to 60C |
| Number of Aux. Outputs | +4 AUX |
| Contact Configuration | 2P+N+G |
| Auxiliary Contact Voltage Rating | 600VAC |
| Load Break Amp Rating | 45 A |
| Hz | 60 Hz |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Use With Installation Accessory Size | 3 |
| Impact Rating | IK08 |
| Wire Size | 14 AWG to 4 AWG |
| Wire Temperature Rating | 60 deg C |
| Auxiliary Contact Rating | 1.2 A |
| Keying Position | 7 |
| Terminal Type | Screw terminal |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Wire Strip Length | Phase: 3/4 in |
| Package Quantity | 1 |
