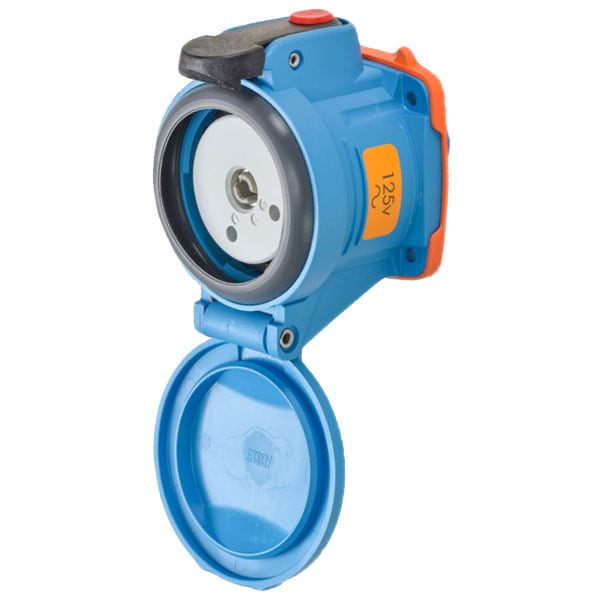

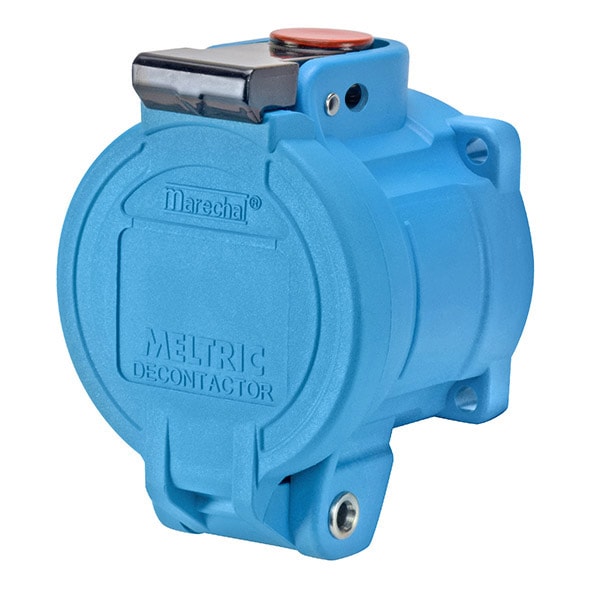

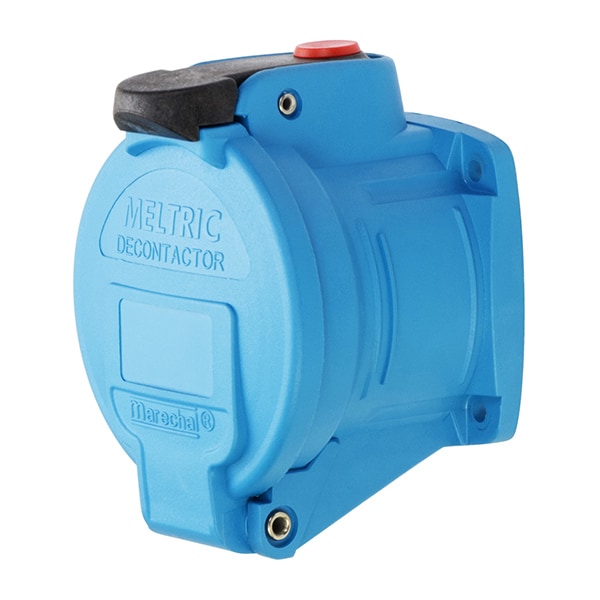

Este receptáculo de clavija y enchufe de Meltric está diseñado para una corriente de 30 amperios y una tensión de 125V CA, con configuración monofásica de 2 polos. Cumple con la clasificación NEMA 4X para protección en entornos exteriores.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 125V AC |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 3 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| Resistance Properties | Impact Resistant |
| Body Material | Polyester |
| Use With | Mating Box MB3 |
| Voltage | 125V AC |
| NEMA Rating | 4X |
| HP | 1 |
| Terminal Type | Screw terminal |
| Color Code | Orange |
| Load Break Amp Rating | 30 A |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Operating Temp. Range | -40C to 60C |
| Number of Notch Positions | 24 |
| Keying Position | 7 |
| Wire Size | 14 AWG to 8 AWG |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 2 |
| Number of Aux. Outputs | NO AUX |
| Wire Strip Length | Phase: 7/16 in |
| Contact Configuration | 1P+N+G |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Load Break Amp Rating_Abnormal Overload | 45 A |
| Package Quantity | 1 |
