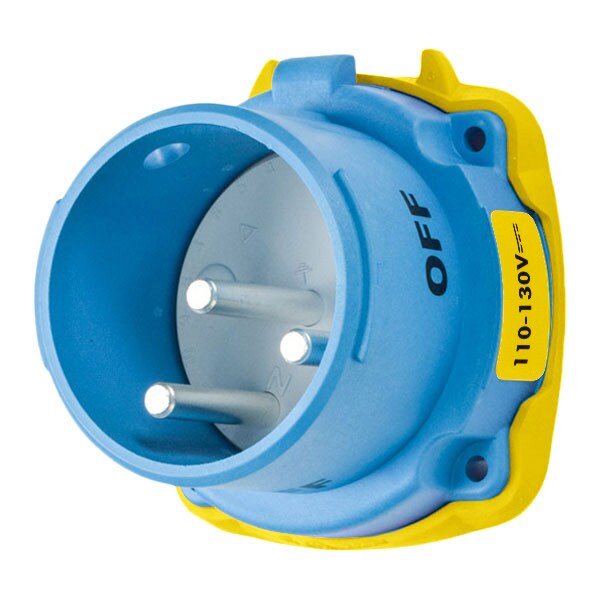

Este receptáculo de clavija y enchufe Meltric es ideal para aplicaciones industriales que requieren un alto rendimiento y resistencia a la intemperie. Con capacidad para 30 A y 130V AC, este receptáculo de 2 polos cumple con los estándares NEMA 3R para protección contra la lluvia y los daños causados por el clima.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 130V AC |
| Number of Poles | 2 |
| Number of Wires | 3 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| Resistance Properties | Corrosion Resistant, UV AC/Sunlight Resistant, Watertight |
| Use With | Mating Box MB3 |
| Body Material | Polyester |
| Voltage | 130V DC |
| NEMA Rating | 3R |
| Wire Temperature Rating | 60 deg C |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Wire Size | 14 AWG to 4 AWG |
| Number of Notch Positions | 24 |
| Terminal Type | Screw terminal |
| Contact Configuration | 2 P+G |
| Wire Strip Length | Phase: 7/8 in |
| Operating Temp. Range | -40C to 60C |
| Impact Rating | IK08 |
| Color Code | Yellow |
| Keying Position | 10 |
| Use With Installation Accessory Size | 3 |
| Load Break Amp Rating_Abnormal Overload | 45 A |
| Package Quantity | 1 |
