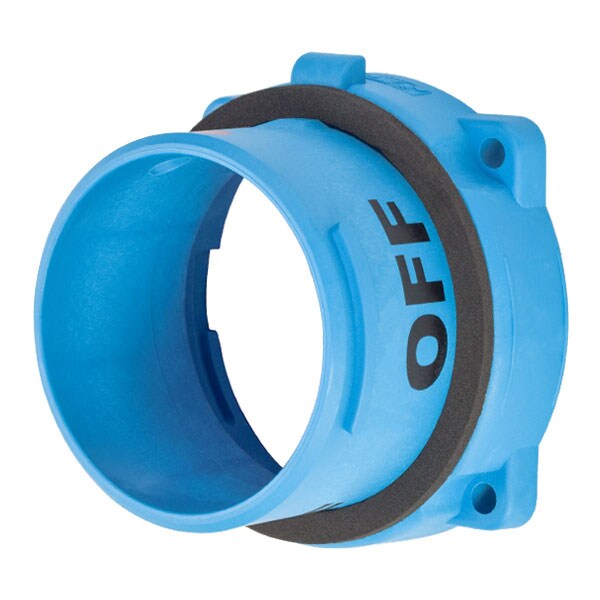

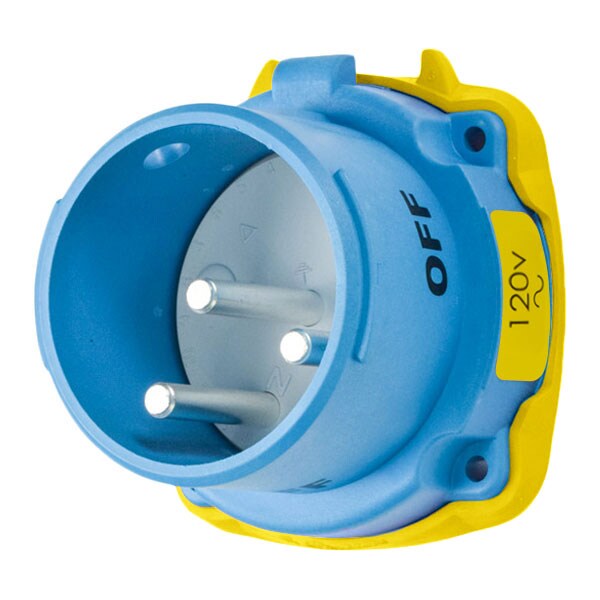

Este receptáculo de clavija y enchufe Meltric es ideal para aplicaciones industriales gracias a su diseño resistente NEMA 4X y su capacidad de 30 A a 130V AC. Garantiza una conexión segura y confiable en entornos exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 130V AC |
| Number of Wires | 4 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| Body Material | Polyester |
| Voltage | 130V DC |
| Use With | Mating Box MB3 |
| NEMA Rating | 4X |
| Keying Position | 10 |
| Terminal Type | Screw terminal |
| Wire Temperature Rating | 60 deg C |
| Number of Notch Positions | 24 |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Use With Installation Accessory Size | 3 |
| Contact Configuration | 2 P+G |
| Impact Rating | IK08 |
| Color Code | Yellow |
| Wire Strip Length | Phase: 7/8 in |
| Wire Size | 14 AWG to 4 AWG |
| Operating Temp. Range | -40C to 60C |
| Load Break Amp Rating_Abnormal Overload | 45 A |
| Package Quantity | 1 |
