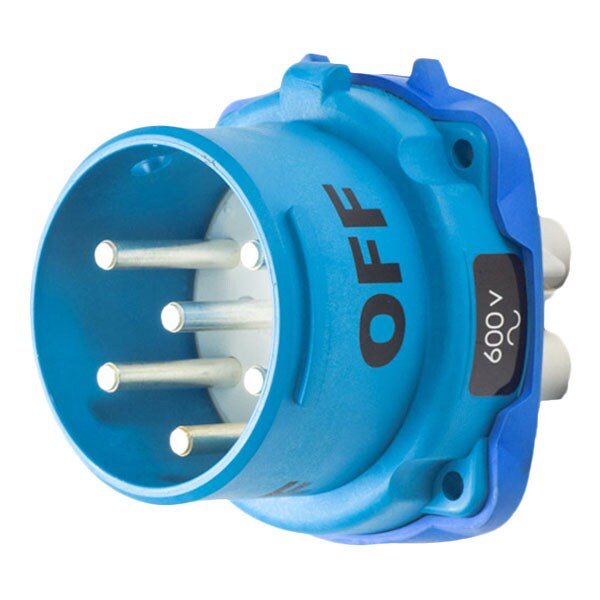

Este receptáculo de clavija y enchufe Meltric de 30 A y 600V AC cuenta con 5 polos y está diseñado para aplicaciones industriales que requieren conexiones seguras y confiables.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 30 A |
| Voltage Rating | 600V AC |
| Number of Poles | 5 |
| Number of Wires | 6 |
| IP Rating | IP54 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Voltage | 600V AC/130V DC |
| Body Material | Polyester |
| Use With | Mating Box MB6 |
| Number of Notch Positions | 5 |
| Hz | 60 Hz |
| Contact Configuration | 5 P+G |
| Operating Temp. Range | -40C to 60C |
| Keying Position | 1 |
| Impact Rating | IK08 |
| Color Code | Blue |
| Tightening Torque | Phase: 16 IN-LBS / 1.8 N-M |
| Wire Strip Length | Phase: 1-1/16 in |
| Number of Aux. Outputs | NO AUX |
| Wire Size | 14 AWG to 8 AWG |
| Terminal Type | Screw terminal |
| Use With Installation Accessory Size | 4 |
| Enclosure | IP55, IP54 |
| Temperature Rating | -40 to 140 °F |
| Dimensions | 3.62 in Dia x 2.2 in L |
| Series | DS7C |
| Package Quantity | 1 |
