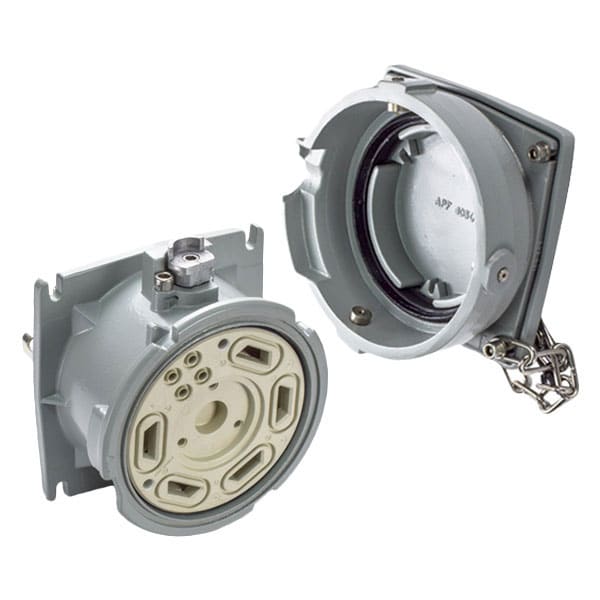

Este receptáculo de clavija y enchufe de Meltric está diseñado para soportar corrientes de hasta 300 amperios y voltajes de 480V AC. Tiene 3 polos para una conexión segura y confiable.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 300 A |
| Voltage Rating | 480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| Wire Connection Type | Screw Terminals |
| Housing Color | Gray |
| Cap Type | No Cap or Cover |
| Standards | CSA, 155873, C22.2 No. 182.1-13, E79796, UL 1682 |
| Voltage | 480V AC |
| Use With | Mating Box MB40 |
| Body Material | Aluminum |
| Terminal Type | Lug terminal |
| Hz | 60 Hz |
| Number of Aux. Outputs | +4 AUX |
| Auxiliary Contact Voltage Rating | 480VAC |
| Wire Strip Length | Auxiliary: 1/2 in |
| Number of Notch Positions | 6 |
| Contact Configuration | 3 P+G |
| Auxiliary Contact Rating | 10 A |
| Impact Rating | IK10 |
| Terminal Connection | Screw |
| Keying Position | 4 |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 360 IN-LBS / 40 N-M |
| Operating Temp. Range | -40C to 60C |
| Wire Size | 14 AWG to 10 AWG; 2 AWG to 750 MCM |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | C |
| Package Quantity | 1 |
