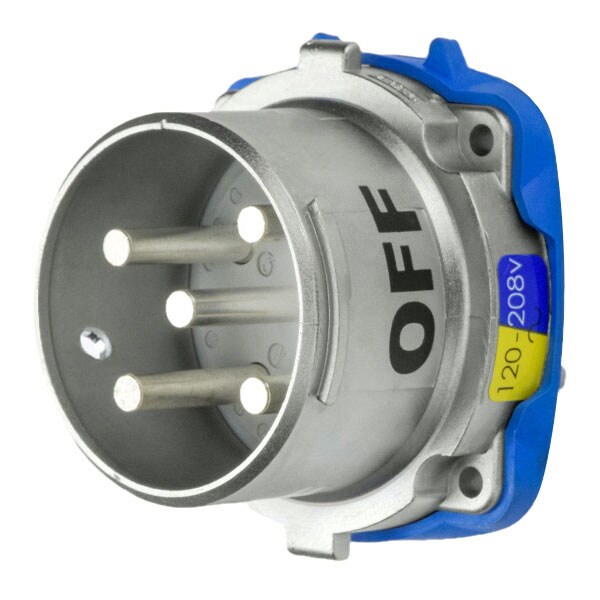

Este receptáculo Pin & Sleeve de Meltric es ideal para aplicaciones de corriente eléctrica de 60 A y voltaje de 120/208V AC. Cuenta con 3 polos y cumple con la clasificación NEMA 3R para protección en exteriores.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 120/208V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP54 |
| NEMA Enclosure Rating | 3R |
| Wire Connection Type | Screw Terminals |
| Housing Color | Metal |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| Voltage | 120/208V AC |
| Use With | Mating Box MB6 |
| Body Material | Zamak |
| HP | 3, 10 |
| NEMA Rating | 3R |
| Hz | 60 Hz |
| Impact Rating | IK09 |
| Operating Temp. Range | -40C to 60C |
| Use With Installation Accessory Size | 4 |
| Load Break Amp Rating | 60 A |
| Color Code | Blue |
| Wire Temperature Rating | 60 deg C |
| Number of Notch Positions | 24 |
| Number of Aux. Outputs | NO AUX |
| Terminal Type | Screw terminal |
| Keying Position | 16 |
| Wire Size | 10 AWG to 2 AWG |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Contact Configuration | 3P+N+G |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Wire Strip Length | Phase: 15/16 in |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Package Quantity | 1 |
