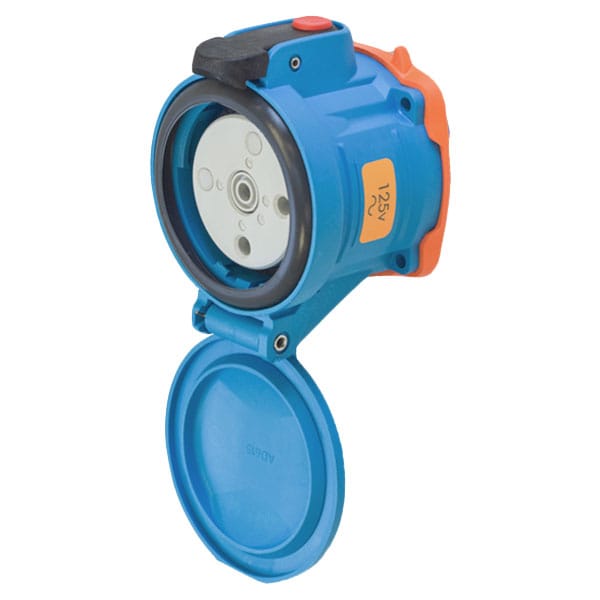

Este receptáculo Pin & Sleeve de la marca Meltric cuenta con una capacidad de 60 amperios y una potencia de 125 voltios CA. Con 3 polos y certificación NEMA 4X, es ideal para aplicaciones industriales exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 125V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682 |
| HP | 2 |
| Use With | Mating Box MB3 |
| NEMA Rating | 4X |
| Voltage | 125V AC |
| Body Material | Polyester |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 1P+N+G |
| Terminal Type | Screw terminal |
| Hz | 60 Hz |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Operating Temp. Range | -40C to 60C |
| Keying Position | 7 |
| Number of Aux. Outputs | NO AUX |
| Wire Size | 14 AWG to 4 AWG |
| Use With Installation Accessory Size | 3 |
| Number of Notch Positions | 24 |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Impact Rating | IK08 |
| Load Break Amp Rating | 60 A |
| Wire Strip Length | Phase: 3/4 in |
| Color Code | Orange |
| Package Quantity | 1 |
