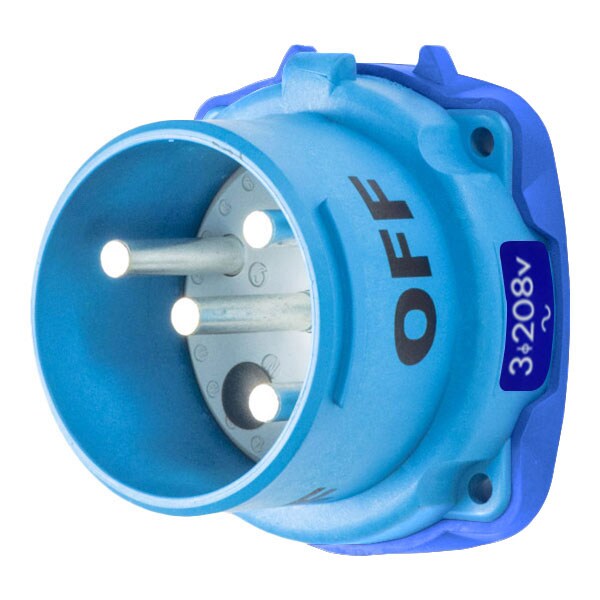

Este receptáculo Pin & Sleeve de Meltric es ideal para corriente de 60 A y voltaje de 208V CA, con 3 polos y certificación NEMA 4X para uso en condiciones adversas.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 208V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| HP | 10 |
| NEMA Rating | 4X |
| Voltage | 208V AC |
| Body Material | Polyester |
| Operating Temp. Range | -40C to 60C |
| Load Break Amp Rating | 90 A |
| Number of Aux. Outputs | NO AUX |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Use With Installation Accessory Size | 4 |
| Keying Position | 16 |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Color Code | Blue |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Terminal Type | Screw terminal |
| Wire Strip Length | Phase: 15/16 in |
| Contact Configuration | 3 P+G |
| Wire Temperature Rating | 60 deg C |
| Wire Size | 10 AWG to 2 AWG |
| Package Quantity | 1 |
