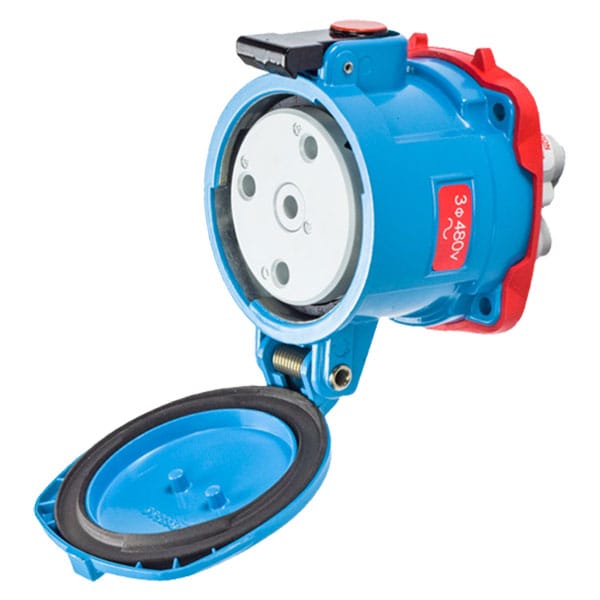

Pin & Sleeve Receptacle, 60 A, 255/480V AC, 3 Pole, NEMA 4X
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 255/480V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682 |
| Material | Metal |
| Use With | Mating Box MB6 |
| Voltage | 480V AC |
| Body Material | Aluminum |
| HP | 25 |
| Keying Position | 4 |
| Number of Notch Positions | 24 |
| Hz | 60 Hz |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Number of Aux. Outputs | NO AUX |
| Use With Installation Accessory Size | 4 |
| Wire Temperature Rating | 60 deg C |
| Contact Configuration | 3 P+G |
| Impact Rating | IK10 |
| Wire Size | 10 AWG to 2 AWG |
| Operating Temp. Range | -40C to 60C |
| Load Break Amp Rating | 60 A |
| Terminal Type | Screw terminal |
| Color Code | Red |
| Wire Strip Length | Phase: 15/16 in |
| Tightening Torque | Phase: 48 IN-LBS / 5.4 N-M |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Temperature Rating | -40 to 140 °F |
| Enclosure | IP55, IP54 |
| Dimensions | 3.86 in Dia x 4.06 in L |
| Series | DS60 |
| Horsepower | 25 |
| Package Quantity | 1 |
