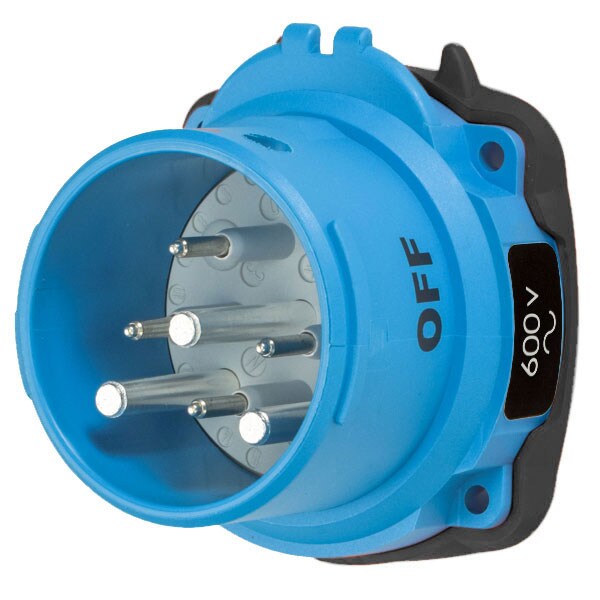

Este receptáculo de clavija y enchufe Meltric de 60 A y 600V AC cuenta con 3 polos y cumple con la norma NEMA 4X para una protección superior. Ideal para aplicaciones industriales exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | UL/CSA, UL 498 |
| Body Material | Polyester |
| HP | 10 |
| Voltage | 600V AC |
| Use With | Mating Box MB3 |
| Wire Size | 14 AWG to 14 AWG; 14 AWG to 4 AWG |
| Number of Aux. Outputs | +4 AUX |
| Hz | 60 Hz |
| Impact Rating | IK08 |
| Use With Installation Accessory Size | 3 |
| Terminal Connection | Screw |
| Keying Position | 14 |
| Auxiliary Contact Voltage Rating | 600VAC |
| Load Break Amp Rating | 60 A |
| Tightening Torque | Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M |
| Color Code | Black |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Contact Configuration | 2 P+G |
| Operating Temp. Range | -40C to 60C |
| Auxiliary Contact Rating | 1.2 A |
| Terminal Type | Screw terminal |
| Number of Notch Positions | 24 |
| Wire Strip Length | Auxiliary 5/8 in 7/8 in, Phase |
| Wire Temperature Rating | 60 deg C |
| Package Quantity | 1 |
