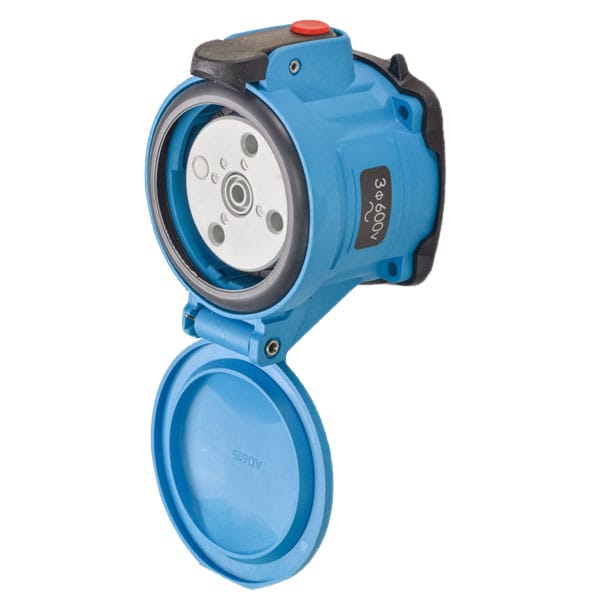

El receptáculo de clavija y enchufe de Meltric es ideal para aplicaciones industriales que requieren una conexión segura y confiable. Con una capacidad de 60 A y 600V CA, este receptáculo trifásico de 3 polos cumple con los estándares NEMA 4X para protección contra el polvo, la suciedad y el agua. Fabricado con materiales resistentes, este receptáculo es la elección perfecta para entornos exigentes.
| Item | Pin & Sleeve Receptacle |
|---|---|
| Current Rating | 60 A |
| Voltage Rating | 600V AC |
| Phase | Three |
| Number of Poles | 3 |
| Number of Wires | 4 |
| IP Rating | IP69K, IP67, IP66 |
| NEMA Enclosure Rating | 4X |
| Wire Connection Type | Screw Terminals |
| Housing Color | Blue |
| Cap Type | No Cap or Cover |
| Standards | cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508 |
| Voltage | 600V AC |
| Body Material | Polyester |
| HP | 20 |
| Load Break Amp Rating | 60 A |
| Contact Configuration | 3 P+G |
| Wire Strip Length | Phase: 3/4 in |
| Hz | 60 Hz |
| Color Code | Black |
| Operating Temp. Range | -40C to 60C |
| Terminal Type | Screw terminal |
| Keying Position | 14 |
| Wire Size | 14 AWG to 4 AWG |
| Impact Rating | IK08 |
| Number of Notch Positions | 24 |
| Wire Temperature Rating | 60 deg C |
| Use With Installation Accessory Size | 3 |
| Short Circuit Current Rating | 100 KA - MAKE & WITHSTAND |
| Tightening Torque | Phase: 15 IN-LBS / 1.7 N-M |
| Number of Aux. Outputs | NO AUX |
| Load Break Amp Rating_Abnormal Overload | 90 A |
| Size | 3.23 DIA X 3.83 in |
| Standard | UL, CSA, NOM, IEC, CE, NFPA 70E |
| Environmental Conditions | -40 to 140 ° F |
| Package Quantity | 1 |
