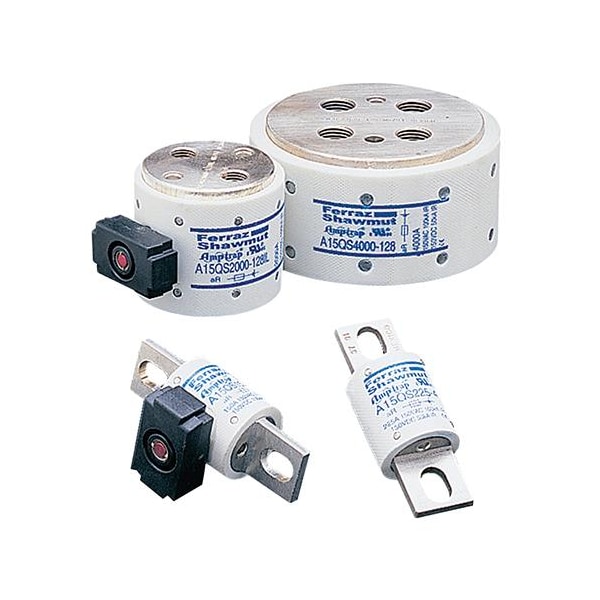

Automotive Fuse, A15QS Series, 350A, 150V DC
| Item | Automotive Fuse |
|---|---|
| Series | A15QS |
| Speed | Very Fast Acting |
| Amps | 350A |
| DC Voltage Rating | 150V DC |
| AC Voltage Rating | 150V AC |
| Interrupt Rating | 200kA |
| Body Style | Blade |
| Body Material | GMG |
| Length | 2.66 in |
| Equivalent Brand and Series | Bussmann FWA, Littelfuse L15S, Mersen A15QS |
| Equivalent Series | A15QS, FWA, L15S |
| Connection/Terminal Material | Tin-Plated Brass |
| Connection/Terminal Type | Blade |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Body/Insulating Material | GMG |
| APPLICATIONS | Protection of heavy duty devices such as electrochemical rectifiers |
| Mounting | Bolted |
| APPROVALS & STANDARDS | UL recognized component UL File E60314; AC: UL guide no. JFHR2 (1-4000A); DC tested to UL standard 198L parameters (1-4000A) |
| Package Quantity | 1 |
