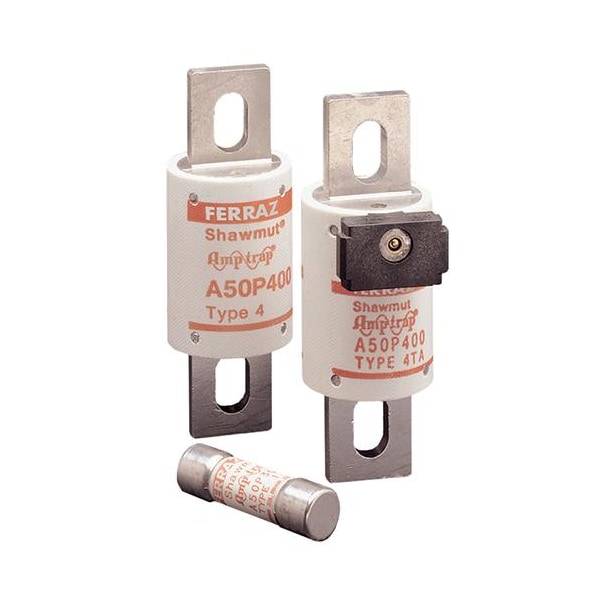

Automotive Fuse, A50P Series, 200A, 450V DC
| Item | Automotive Fuse |
|---|---|
| Series | A50P |
| Speed | Very Fast Acting |
| Amps | 200A |
| DC Voltage Rating | 450V DC |
| AC Voltage Rating | 500V AC |
| Interrupt Rating | 50kA |
| Body Style | Blade |
| Body Material | GMG |
| Length | 3.63 in |
| Equivalent Brand and Series | Mersen |
| APPROVALS & STANDARDS | UL Recognized Component UL File 60314; AC: UL Guide No. JFHR2 (10-800A); DC: UL Guide No.JFHR2 (35-800A) |
| Mounting | Bolted |
| APPLICATIONS | Protection of DC drives, UPS and other equipment of 500 volts or less |
| Body/Insulating Material | GMG |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Connection/Terminal Type | Blade |
| Connection/Terminal Material | Tin-Plated Brass |
| Package Quantity | 1 |
