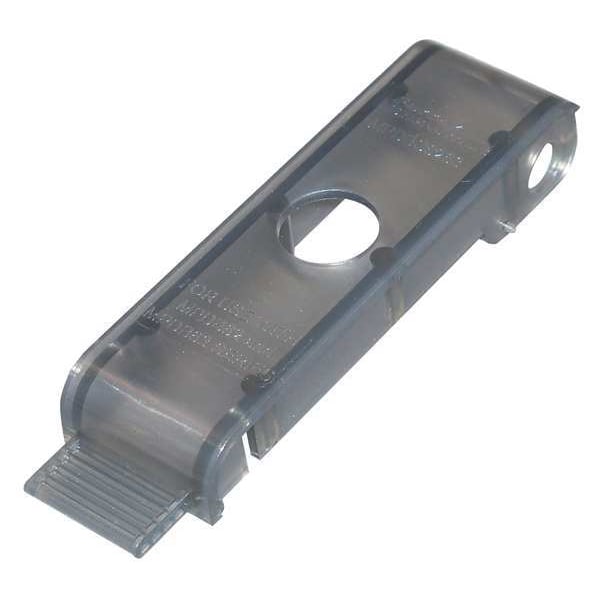

Block Cover, Minature Series, Plastic
| Item | Distribution Block Cover |
|---|---|
| Number of Poles | 1 |
| For Use With | Mfr. No. MPDB62, MPDB63 |
| Standards | CSA Certified, UL Listed |
| Overall Depth | 0.63 in |
| Overall Length | 3.45 in |
| Compatible with Series | MPDB |
| UL 94 Flammability Rating | V-0 |
| Maximum Voltage | 1,000 V |
| RoHS Compliant | Yes |
| Compatible Manufacturer Model Number | MPDB62, MPDB63 |
| Overall Width | 0.92 in |
| Compatible with Product Type | Distribution Block |
| Material | Polycarbonate |
| Special Features | Provide Dead-Front Protection |
| Includes | Polycarbonate Safety Covers |
| Max. Operating Temp. | 80°C |
| Features | Flammability Rating 94 V-0; GFPC Insulators; 1 inch through air and 2 inches over surface spacing available |
| APPROVALS & STANDARDS | UL Listed to subject 1953, File E352417 unless noted otherwise; CSA Certified Class 6228 01 |
| Rated voltage AC UL | 1,000 V |
| Product Width | 1.05 in |
| Product Height | 0.08 in |
| Short Description | MPDB UL1953 MINI 1-pole Cover |
| Item Description (ERP) | SAFETY COVER FOR MINI MPDB |
| Product Length | 5.7 in |
| Short Circuit Rating (Standalone) | 10 kA |
| APPLICATIONS | Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points. |
| Rated voltage DC UL | 1,000 V |
| Package Quantity | 1 |
