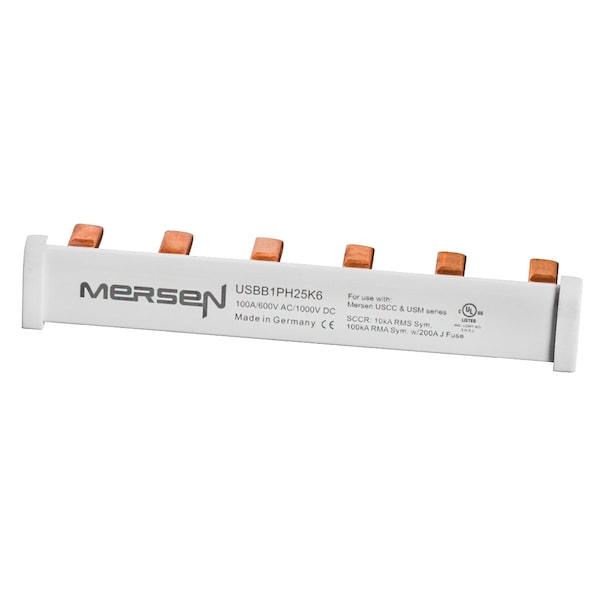

Bus Bar, 100 to 200A Amp Range, 600V DC/1000V DC Volt Rating, 6 Poles, Comb Bus Bar
| Item | Bus Bar |
|---|---|
| Amp Range | 100 to 200A |
| Voltage Rating | 600V DC/1000V DC |
| Number of Poles | 6 |
| Connector Type | Comb Bus Bar |
| Fits Fuse Type | Midget |
| Fuse UL Class | CC, Midget |
| Height | 0.61 in |
| Length | 4.16 in |
| Features | Applications where Mersen USM/USCC fuseholders are in use UL 508 panels Solar string combiner boxes Control panels Power distribution panels |
| Body Material | Brass |
| Width | 0.59 in |
| Series | USBB |
| Fuse Type | Accessory |
| Standards | UL Listed to standard UL508, File E348854 IEC Compliant to standard 60947-2 |
| Short Description | 6P 1PH 600VAC / 1000VDC BUSBAR |
| Max. Voltage | 1000V DC |
| For Fuse Class | CC |
| Max. Amps | 200 |
| Package Quantity | 1 |
