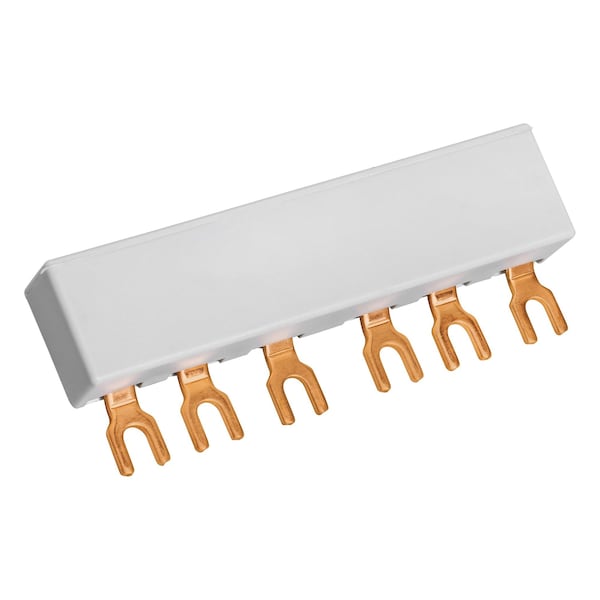

Busbar Connector, 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Pressure Plate
| Item | Busbar Connector |
|---|---|
| Voltage Rating | 600V AC/DC |
| Number of Poles | 3 |
| Connector Type | Pressure Plate |
| Fuse Type | Midget Class CC Accessory |
| Standards | UL Listed to standard 4248-4, File E52283 CSA Certified C22.2, Class 6225 |
| Mounting Style | DIN-Rail |
| Features | Primarily for replacement of circuit breakers in motor circuits to achieve higher SCCR Circuits up to 600V for motors, control, transformers, etc . Applications requiring lock-out / tag-out procedures |
| Body Material | Copper |
| Max. Voltage | 600V AC/DC |
| Max. Amps | 30 |
| Package Quantity | 1 |
