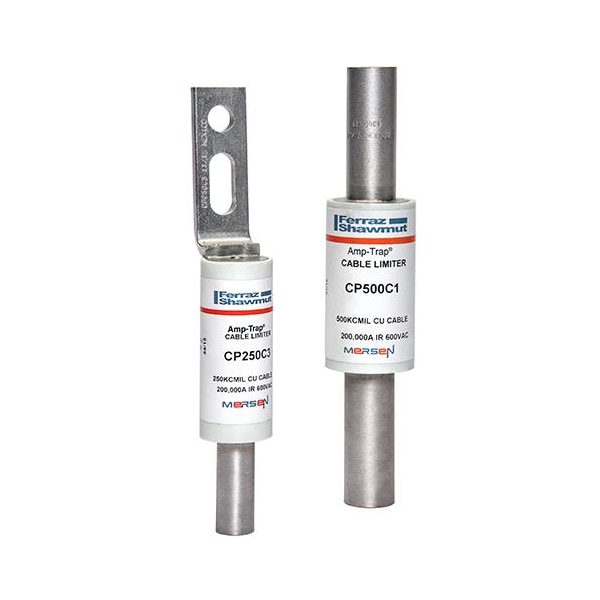

Cable Fuse, CP Series, 600V AC, Blade
| Item | Cable Fuse |
|---|---|
| Series | CP |
| AC Voltage Rating | 600V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Blade |
| Interrupt Rating | 200kA |
| Body Material | GMG |
| Diameter | 1.88 in |
| Length | 10 in |
| Fuse Voltage Rating | 600 V |
| Storage Temp. Range | -25 to 80 °C |
| Connection Type | Blade to Cable |
| Operating Temp. Range | 80 °C |
| Mounting | Bolted, Crimp |
| Connection Material | Tin-Plated Copper, Brass |
| Connection/Terminal Material | Tin-Plated Copper, Brass |
| APPROVALS & STANDARDS | UL listed to File E305297 |
| APPLICATIONS | Service entrance and distribution runs |
| AC Max I.R./Breaking Capacity: I1 | 200 kA |
| Body/Insulating Material | GMG |
| Connection/Terminal Type | Blade To Cable |
| Rated voltage AC UL | 600 V |
| Package Quantity | 1 |
