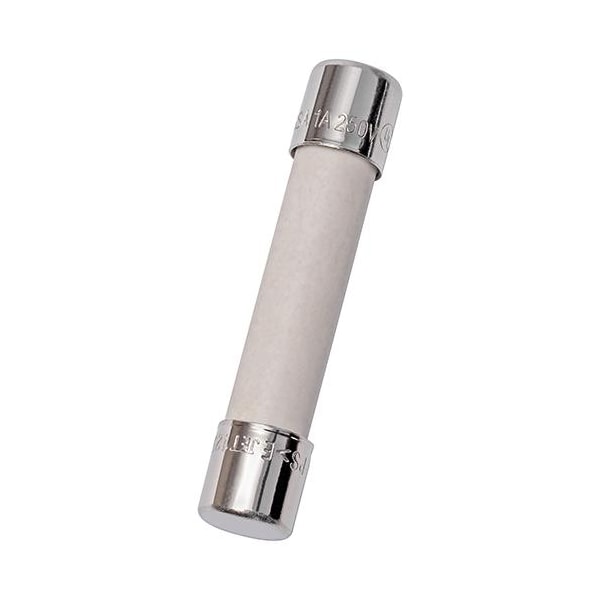

Ceramic Fuse, GSA Series, Time-Delay, 25A, 125V AC, 400A at 125V AC
| Series | GSA |
|---|---|
| Speed | Time-Delay |
| Amps | 25A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 400A at 125V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1-1/4 in |
| Body Material | Ceramic |
| Equivalent Brand and Series | Bussmann MDA, Littelfuse 326, Mersen GSA |
| DC Voltage Rating | Not Rated |
| Item | Ceramic Fuse |
| Mounting | Clip |
| Fuse Class | Supplemental |
| APPROVALS & STANDARDS | 1/16A through 8A, 250VAC, UL Listed; 10, 12, 15A, 250V UL Recognized; 1/16A through 8A, 250VAC, CSA Certified; 10, 12, 15A, 250V CSA Recognized; 20A, 250VAC, 25 & 30A, 125VAC |
| APPLICATIONS | Electronic circuits |
| Package Quantity | 1 |
