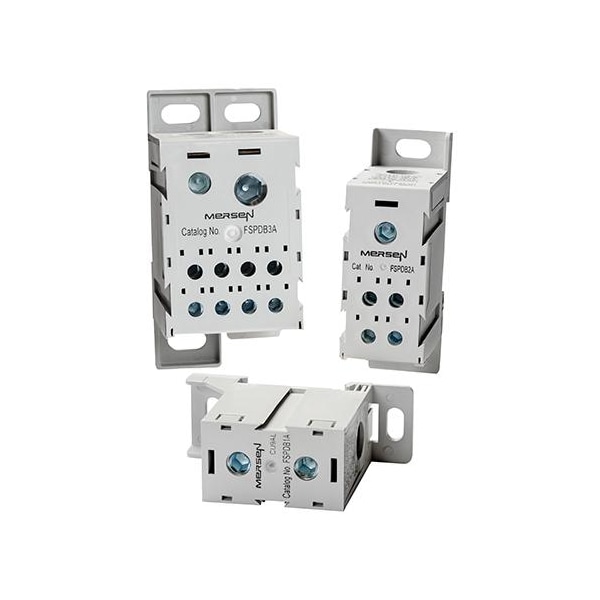

Finger Safe Fuse Block, 1 Poles, 600V AC Volt Rating
| Item | Finger Safe Fuse Block |
|---|---|
| Number of Poles | 1 |
| Voltage Rating | 600V AC |
| Connector Type | Box Lug |
| Mounting Style | DIN-Rail, Screw |
| Wire Range | 14 AWG to 2 AWG |
| Body Material | Nylon |
| Width | 1.95 in |
| Length | 2.86 in |
| Height | 1 in |
| Fuse Type | FSPDB Series UL 1059 Finger-Safe Power Distribution Blocks |
| Features | For multi-pole panel mounting, simply snap in pins for rigid fit. Cap plugs provide the ability to maintain touch safety on unused openings. Circuit identification markers simply snap into blocks to ID circuits. End anchors provide rigid end stops |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Rating (Class CC) | 30 kA |
| APPROVALS & STANDARDS | UL Recognized Component Guide XCFR2, File E73571; CSA Certified: Class 6228, File 69363; IEC-947-7-1, 529, 68-2-6, CE Marked |
| Short Circuit Rating (Class G) | 60 kA |
| Short Circuit Rating (Class RK5) | 100 kA |
| Short Circuit Rating (Class T) | 200 kA |
| Short Circuit Rating (Standalone) | 10 kA |
| Short Circuit Rating (Class L) | 0 kA |
| Short Circuit Rating (Class J) | 200 kA |
| Number of Openings per Pole (Primary) | 1 |
| Short Circuit Rating (Class RK1) | 200 kA |
| Mounting Hole Dia. | 0.45 in |
| Package Quantity | 1 |
