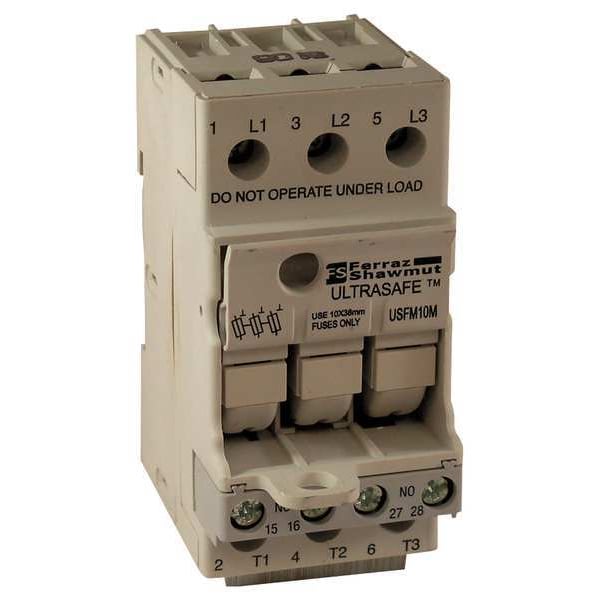

Finger Safe Fuse Block, 3 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Finger Safe Fuse Block |
|---|---|
| Series | USFM10 |
| Number of Poles | 3 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Connector Type | Screw |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 16 AWG to 10 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Polyamide |
| Width | 1.77 in |
| Length | 3.54 in |
| Height | 2.27 in |
| For Fuse Series | ATM, ATQ, DCT, OTM, TRM |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Features | Includes 1NO/1NC Auxiliary Contact |
| Fits Fuse Type | Midget |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | Yes |
| Fits Fuse Block Style | Non-Rejection |
| Wire Size | 16 to 10 AWG |
| Package Quantity | 1 |
