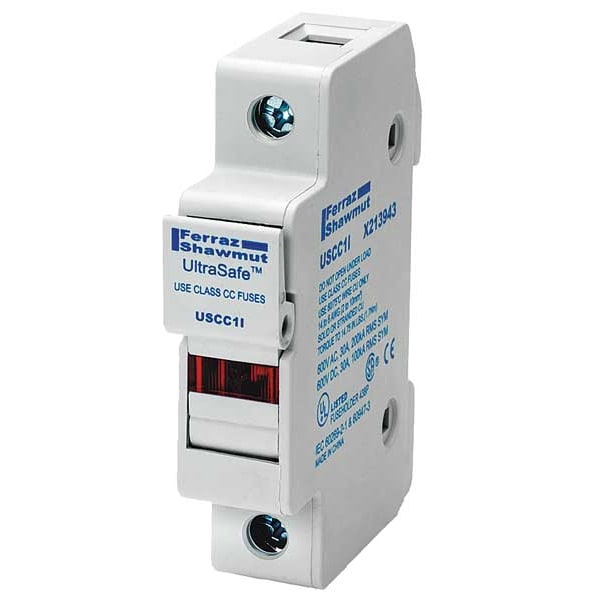

Finger Safe Fuse Block, CC UL Class, 1 Poles, 0 to 30A Amp Range, 24V DC Volt Rating
| CAD Available | Yes |
|---|---|
| Item | Finger Safe Fuse Block |
| UL Class | CC |
| Series | USCC |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 24V DC |
| Connector Type | Pressure Plate |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 14 AWG to 6 AWG |
| Fuse Block Design | Finger-Safe |
| Body Material | Polyamide |

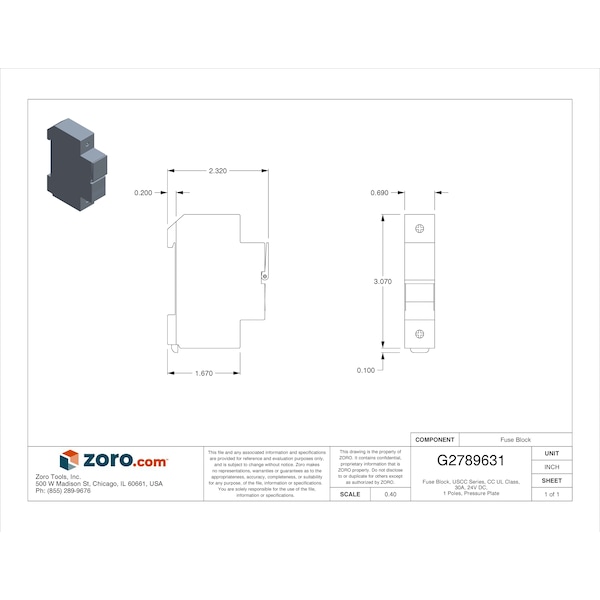

| Width | 0.69 in |
| Length | 3.07 in |
| Height | 2.32 in |
| Fuse Holder Code | D, W |
| Standards | CSA Certified, UL Listed |
| Fuse Type | Industrial |
| For Fuse Series | ATDR, ATMR, ATQR |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 200 kA |
| Max. Operating Temp. | 80 deg C |
| Includes Communication Feature | No |
| Includes Auxiliary Contact | No |
| Fits Fuse Block Style | Rejection |
| Wiring range | Cu #6-14 |
| Rated Torque (In.-Lb.) | 15 in-lb |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Fuse Installation Method | Clip-in |
| Frequency | 50/60 Hz |
| APPLICATIONS | All circuits up to 600 volts for motors, control circuits, transformers, etc...; DC circuits up to 1000VDC including photovoltaic applications; Non-load disconnect |
| Wire Size | 14 to 6 AWG |
| Max Fuse Rating | 30 A |
| APPROVALS & STANDARDS | UL Listed to Standard 4248- 4 (class CC) and UL Recognized to Standard 4248-1 (midget), File E52283; UL Listed to standard 4248-18 (photovoltaic), File E347822; CSA Certified C22.2; IEC 60269-2-1 and 60947-3 Compliant (USM only) |
| Fuse Block or Holder AC Voltage Rating | Not Rated |
| Short Description | Fuse Holder 24VDC Class CC 30A 1-Pole LED Pressure Plate IP65 |
| Installation Mounting | DIN Rail |
| Torque Rating | 15 in-lb |
| Indication System Type | LED |
| Package Quantity | 1 |
