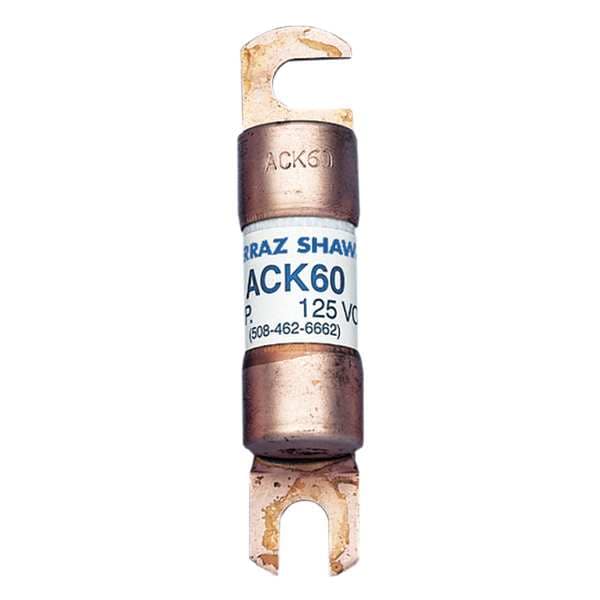

Forklift Limiter Fuse, ACK Series, 60A, Time-Delay, 125V AC, Bolt-On
| Item | Forklift Limiter Fuse |
|---|---|
| Series | ACK |
| Amps | 60A |
| Speed | Time-Delay |
| AC Voltage Rating | 125V AC |
| DC Voltage Rating | 125V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125 V DC, 10kA at 125V AC |
| Body Material | Poly Tube |
| Diameter | 55/64 in |
| Length | 3-3/4 in |
| Equivalent Brand and Series | Littelfuse CCK, Mersen ACK |
| Equivalent Series | ACK, CCK |
| Fits Fuse Block Style | Non-Rejection |
| Rated voltage DC UL | 125 V |
| Element | Dual |
| Standards | UL Recognized Component To Standard 248-1, File E60314 JFHR2 |
| Mounting | Bolted |
| APPROVALS & STANDARDS | UL recognized components (All Products) File E60314 |
| Body/Insulating Material | PolyTube |
| APPLICATIONS | Forklift trucks; Battery hand trucks; Motorized work platforms; Battery systems |
| Connection/Terminal Material | Copper |
| Connection Type | Blade |
| Width | Not Applicable |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Frequency | 50/60 Hz |
| Connection/Terminal Type | Blade |
| Depth | Not Applicable |
| Package Quantity | 1 |
