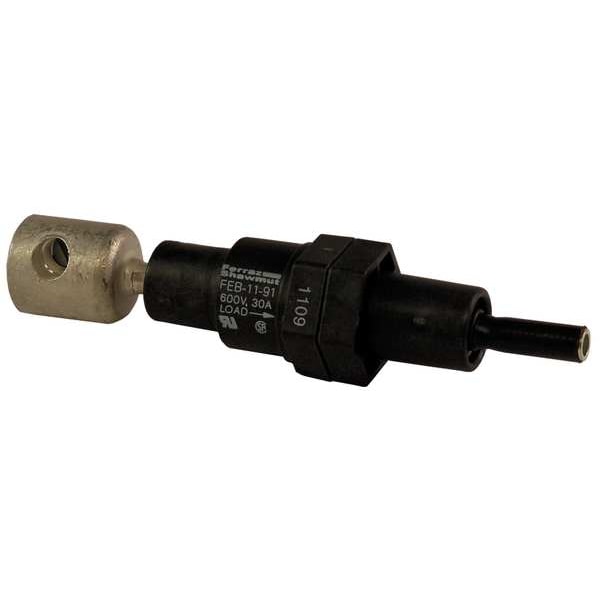

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | FEB |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Midget |
| Connector Type | Screw, Crimp |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 8 AWG, 12 AWG to 2 AWG |
| Fuse Block Design | Non-Breakaway |
| Body Material | PBT |
| Width | 1.12 in |
| Length | 4.7 in |
| Height | 1.12 in |
| Fuse Type | Midget and CC Class |
| For Fuse Series | ATQ, ATM, TRM, OTM, GGU, A13x-2, A25Z-2, A60Q-2, DCT, A6Y-2B |
| Standards | CSA, UL-R |
| Fuse UL Class | Midget |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 100 kA |
| Max. Operating Temp. | 80 deg C |
| Rated Torque (In.-Lb.) | 35 in-lb |
| Max. Voltage | 600V AC/DC |
| Max. Amps | 30 |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Package Quantity | 1 |
