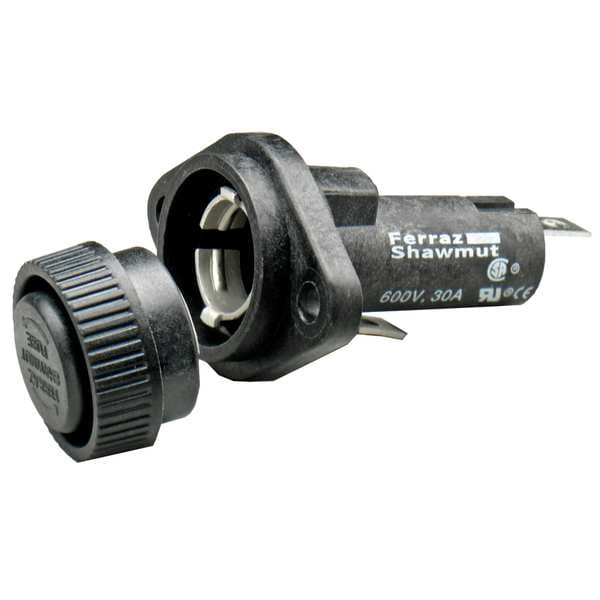

Fuse Holder, 1 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| CAD Available | Yes |
|---|---|
| Item | Fuse Holder |
| Series | GPM |
| Number of Poles | 1 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Midget |
| Connector Type | Quick Connect |
| Mounting Style | Panel |
| Visual Indication | Non-Indicating |
| Fuse Block Design | Not Applicable |
| Body Material | PBT |
| Width | 1.13 in |
| Length | 1.13 in |
| Height | 2.42 in |
| For Fuse Series | ATQ, ATM, TRM, OTM, GGU, A13x-2, A25Z-2, A60Q-2, DCT, A6Y-2B |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Standards | CSA, UL-R |
| Fuse Type | Midget and CC Class |
| Fuse UL Class | Midget |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Diameter | 0.4063 in |
| Fuse Cap Style | Bayonet Knob |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 100 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Amps | 30 |
| Fits Fuse Block Style | Non-Rejection |
| Mounting Hole Dia. | 1-1/64 in |
| Max. Voltage | 600V AC/DC |
| Fuse Installation Method | Clip-in |
| APPLICATIONS | Panel Mount Fuse Holders |
| Short Circuit Current Rating (SCCR) | 100 |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| Short Description | Fuse Bases 600V 30A 1-pole -B 1/4", Quick Connect / Solder |
| Ampere Rating | 30 A |
| APPROVALS & STANDARDS | UL Recognized, guide IZLT2, File E52283; CSA Certified - C22.2, class 6225, File 32169 |
| Installation Mounting | Panel Mount |
| Max Fuse Rating | 30 A |
| Package Quantity | 1 |
