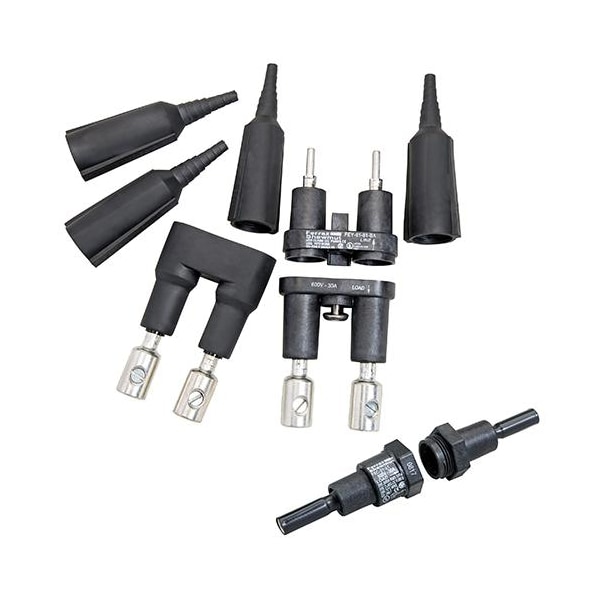

Fuse Holder, 1 Poles, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | FEB |
| Number of Poles | 1 |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Midget |
| Connector Type | Screw |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 12 AWG to 2 AWG |
| Body Material | Polyethylene |
| Width | 1 in |
| Length | 5.8 in |
| Height | 1 in |
| Fuse Voltage Rating | 600V |
| Amps | 30 |
| Fits Fuse Block Style | Non-Rejection |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Fuse UL Class | Midget |
| Fuse Type | FEB - Midget |
| Rated Torque (In.-Lb.) | 35 in-lb |
| Short Circuit Current (KA) | 100 kA |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Max Fuse Rating | 30 A |
| Fuse Installation Method | Clip-in |
| Short Circuit Current Rating (SCCR) | 100 kA |
| APPLICATIONS | Street lighting; Parking lot lighting; Traffic signaling; Sports lighting; Boats and marinas; Humid/corrosive environments |
| Installation Mounting | In-Line |
| Torque Rating | 35 in-lb |
| Frequency | 50/60 Hz |
| Short Description | Fuse Bases 600V 30A Midget 1-pole 81-91 BK Single Set Screw / Double Set Screw |
| APPROVALS & STANDARDS | UL Listed Class CC Guide IZLT, File E52283; UL Recognized Component Midget Guide IZLT2, File E52283; CSA Certified Class CC and Midget Class 6225, File 32169 |
| Max. Amps | 30 |
| Max. Voltage | 600V AC/DC |
| Amps AC | 30 A |
| Package Quantity | 1 |
