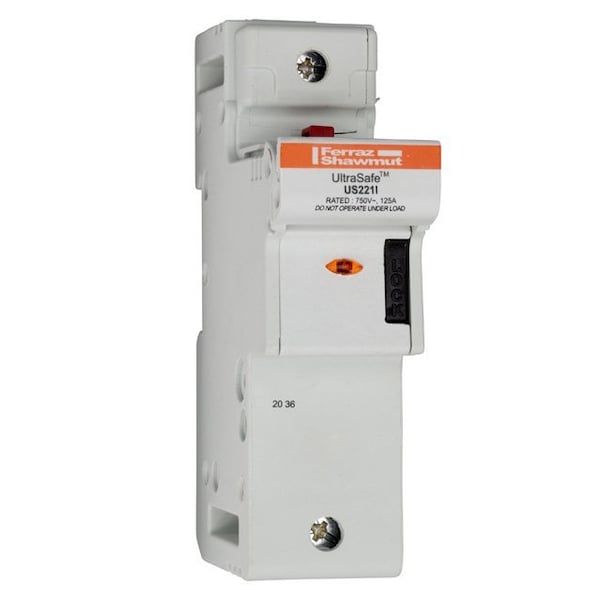

Fuse Holder, 1 Poles, 690V AC Volt Rating
| Item | Fuse Holder |
|---|---|
| Number of Poles | 1 |
| Voltage Rating | 690V AC |
| Connector Type | Pressure Plate |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Body Material | Polyamide |
| For Fuse Size | 58 mm L x 22 mm dia |
| Fuse Type | Modular fuse-holders |
| Rated Torque (In.-Lb.) | 35.4 in-lb |
| Frequency Range (Hz) | 50/60 Hz |
| Max. Operating Temp. | 60 deg C |
| Short Circuit Current (KA) | 100 kA |
| Max. Voltage | 690 V AC |
| Max. Amps | 125 |
| Package Quantity | 1 |
