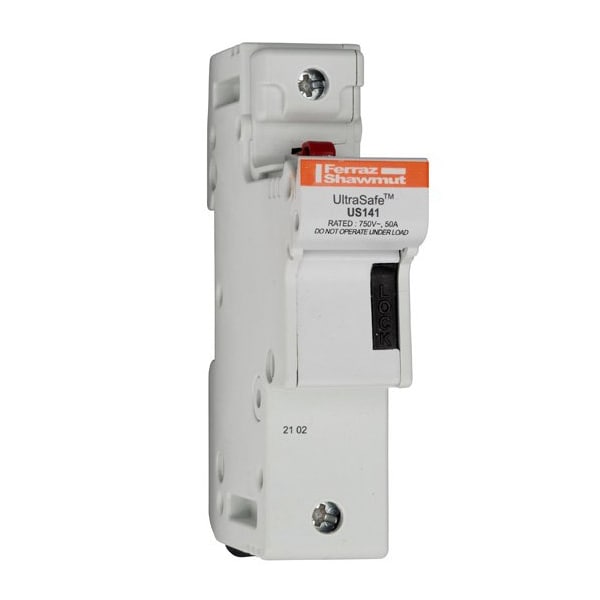

Fuse Holder, 1 Poles, 800V AC/1000V DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | US14 |
| Number of Poles | 1 |
| Voltage Rating | 800V AC/1000V DC |
| Fits Fuse Type | Fuse Links |
| Connector Type | Clip |
| Mounting Style | DIN-Rail |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 2 AWG |
| Body Material | Polyamide |
| Width | 1.04 in |
| Length | 3.01 in |
| Height | 4.36 in |
| For Fuse Size | 51 mm L x 14 mm dia |
| Fuse Type | Modular fuse-holders |
| Max. Operating Temp. | 60 deg C |
| Short Circuit Current (KA) | 100 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Rated Torque (In.-Lb.) | 30.98 in-lb |
| Max. Amps | 50 |
| Max. Voltage | 800V AC/1000V DC |
| Package Quantity | 1 |
