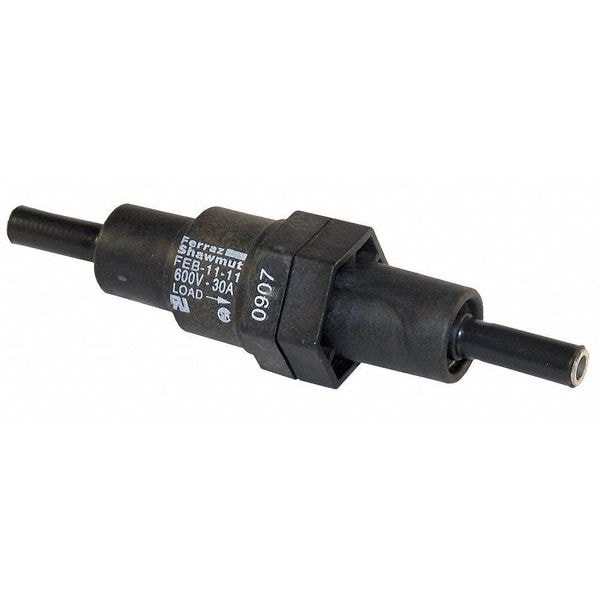

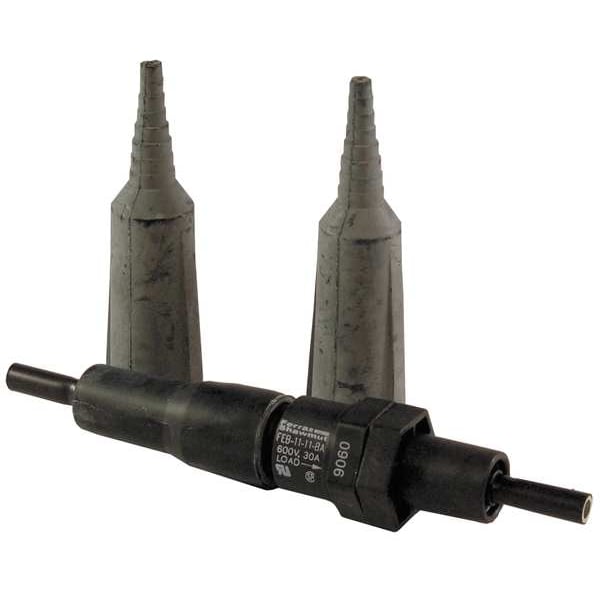

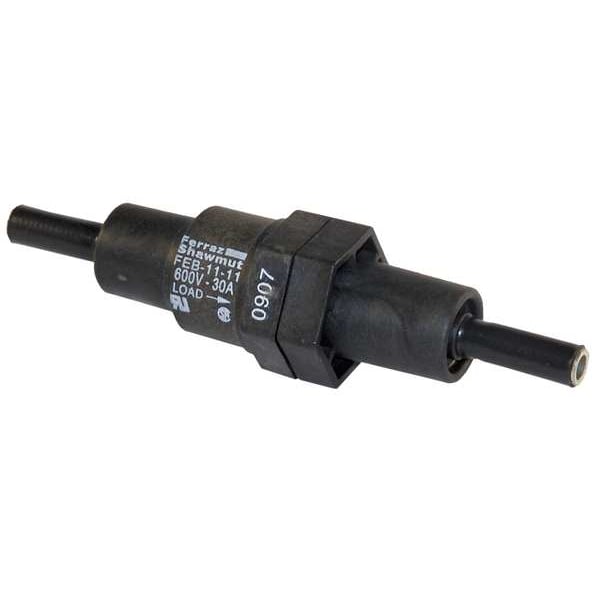

Fuse Holder, 2 Poles, 0 to 30A Amp Range, 600V AC/DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | FEX |
| Number of Poles | 2 |
| Amp Range | 0 to 30A |
| Voltage Rating | 600V AC/DC |
| Fits Fuse Type | Midget |
| Connector Type | Crimp |
| Mounting Style | In-Line |
| Visual Indication | Non-Indicating |
| Wire Range | 14 AWG to 8 AWG |
| Fuse Block Design | Non-Breakaway |
| Body Material | PBT |
| Width | 2.15 in |
| Length | 4.3 in |
| Height | 0.99 in |
| For Fuse Series | ATQ, ATM, TRM, OTM, GGU, A13x-2, A25Z-2, A60Q-2, DCT, A6Y-2B |
| Fuse Type | Midget |
| Fuse UL Class | Midget |
| Fuse Block or Fuse Holder Type | Fuse Holder |
| Standards | CSA, UL-R |
| For Fuse Size | 1-1/2 in L x 13/32 in dia |
| Max. Operating Temp. | 80 deg C |
| Short Circuit Current (KA) | 100 kA |
| Frequency Range (Hz) | 50/60 Hz |
| Fits Fuse Block Style | Non-Rejection |
| Max. Voltage | 600V AC/DC |
| Max. Amps | 30 |
| Fuse Block or Holder DC Voltage Rating | 600VDC |
| Installation Mounting | In-Line |
| APPROVALS & STANDARDS | UL Listed Class CC Guide IZLT, File E52283; UL Recognized Component Midget Guide IZLT2, File E52283; CSA Certified Class CC and Midget Class 6225, File 32169 |
| Fuse Installation Method | Clip-in |
| Short Circuit Current Rating (SCCR) | 100 kA |
| Max Fuse Rating | 30 A |
| Frequency | 50/60 Hz |
| Short Description | Crimp, Fuse Bases 600V 30A |
| Ampere Rating | 30 A |
| Fuse Block or Holder AC Voltage Rating | 600VAC |
| APPLICATIONS | Street lighting; Parking lot lighting; Traffic signaling; Sports lighting; Boats and marinas; Humid/corrosive environments |
| Package Quantity | 1 |
