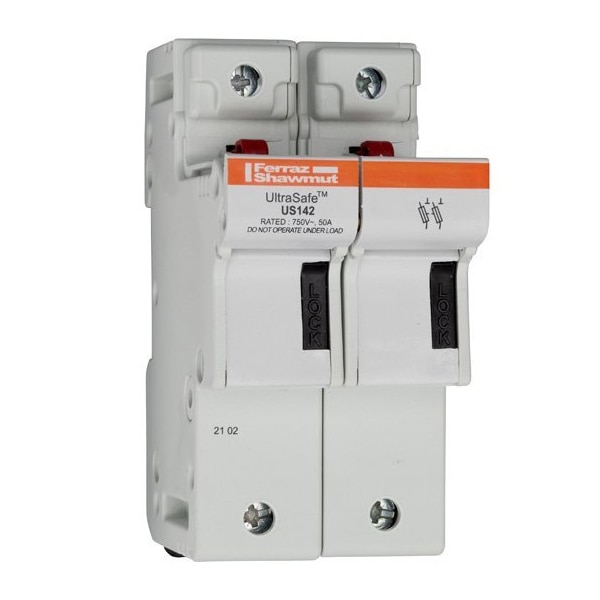

Fuse Holder, 2 Poles, 750V AC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | US14 |
| Number of Poles | 2 |
| Voltage Rating | 750V AC |
| Fits Fuse Type | Ferrule |
| Connector Type | Pressure Plate |
| Mounting Style | DIN-Rail |
| Body Material | Polyamide |
| Fuse Type | Modular fuse-holders |
| For Fuse Size | 51 mm L x 14 mm dia |
| Frequency Range (Hz) | 50/60 Hz |
| Short Circuit Current (KA) | 100 kA |
| Rated Torque (In.-Lb.) | 30.98 in-lb |
| Max. Operating Temp. | 60 deg C |
| Max. Amps | 50 |
| Max. Voltage | 750 V AC |
| Package Quantity | 1 |
