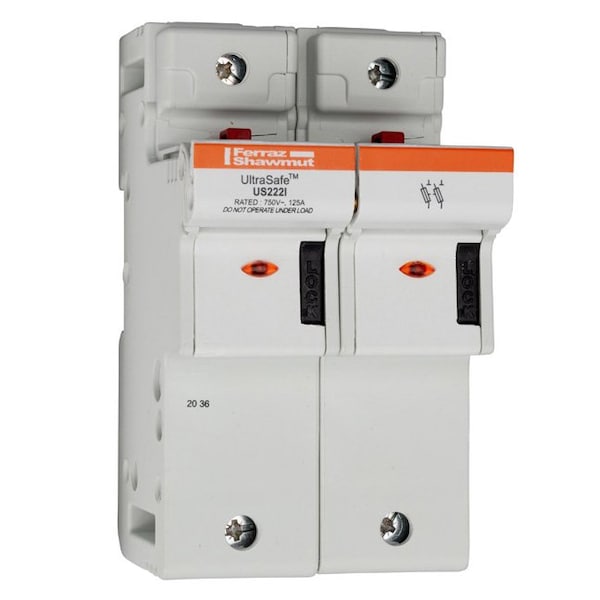

Fuse Holder, 2 Poles, 800V AC/1000V DC Volt Rating
| Item | Fuse Holder |
|---|---|
| Series | US22 |
| Number of Poles | 2 |
| Voltage Rating | 800V AC/1000V DC |
| Connector Type | Pressure Plate |
| Mounting Style | DIN-Rail |
| Visual Indication | Indicating |
| Wire Range | 14 AWG to 1/0 AWG |
| Body Material | Polyamide |
| Width | 2.76 in |
| Length | 3.01 in |
| Height | 5.02 in |
| For Fuse Size | 58 mm L x 22 mm dia |
| Fuse Type | Modular fuse-holders |
| Short Circuit Current (KA) | 100 kA |
| Max. Operating Temp. | 60 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| Rated Torque (In.-Lb.) | 35.4 in-lb |
| Max. Voltage | 800V AC/1000V DC |
| Max. Amps | 125 |
| Package Quantity | 1 |
