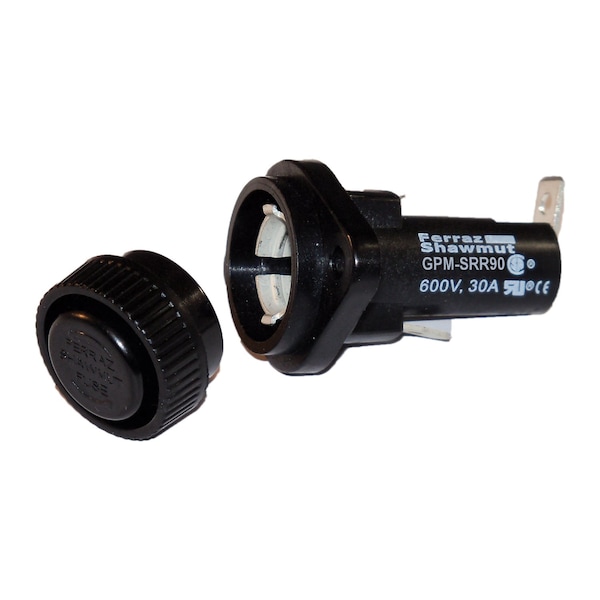

Fuse Holders, 1 Poles, 600V AC/DC Volt Rating
| Item | Fuse Holders |
|---|---|
| Series | GPM |
| Number of Poles | 1 |
| Voltage Rating | 600V AC/DC |
| Connector Type | Quick Connect |
| Mounting Style | Panel |
| Visual Indication | Non-Indicating |
| Body Material | Thermoplastic |
| Width | 1.13 in |
| Length | 1.13 in |
| Height | 2.42 in |
| Short Circuit Current (KA) | 100 kA |
| Max. Operating Temp. | 80 deg C |
| Frequency Range (Hz) | 50/60 Hz |
| APPROVALS & STANDARDS | UL Recognized, guide IZLT2, File E52283; CSA Certified - C22.2, class 6225, File 32169 |
| Fuse Installation Method | Clip-in |
| Mounting Hole Dia. | 1-1/64 in |
| Fits Fuse Block Style | Non-Rejection |
| For Fuse Class | CC |
| Amps AC | 30 A |
| Package Quantity | 1 |
