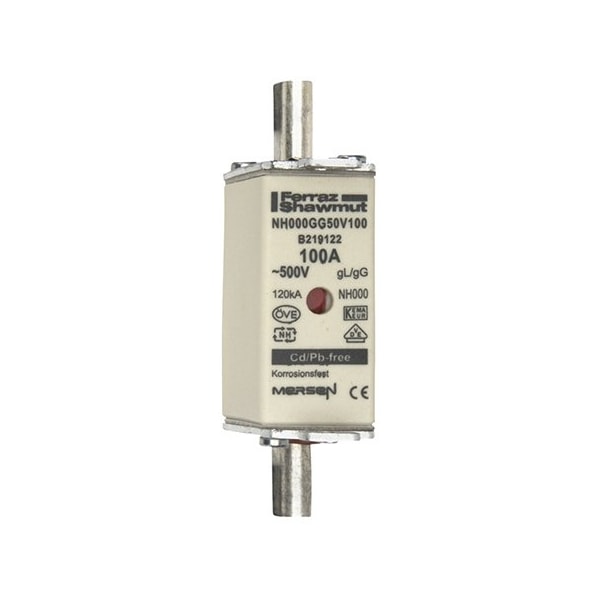

Fuse Link, B21 Series, 100A, Time-Delay, 500V AC, Square
| Item | Fuse Link |
|---|---|
| Series | B21 |
| Amps | 100A |
| Speed | Time-Delay |
| AC Voltage Rating | 500V AC |
| DC Voltage Rating | 250V DC |
| Body Style | Square |
| Visual Indication | Indicating |
| Interrupt Rating | 120kA |
| Body Material | Ceramic |
| Length | 3.09 in |
| Fuse Voltage Rating | 500 V |
| Fuse Speed | gG |
| Fuse Amps | 100 A |
| Body Insulating Material | Ceramic |
| Power Dissipation At Rated Current Value | 7.5 W |
| Mounting | Clip |
| Speed Characteristic | gG |
| Rated Voltage Dc Iec | 250 V |
| Rated Voltage Ac Iec | 500 V |
| Ampere Rating | 100 A |
| Connection Terminal Material | Silver-Plated Copper |
| Package Quantity | 1 |
