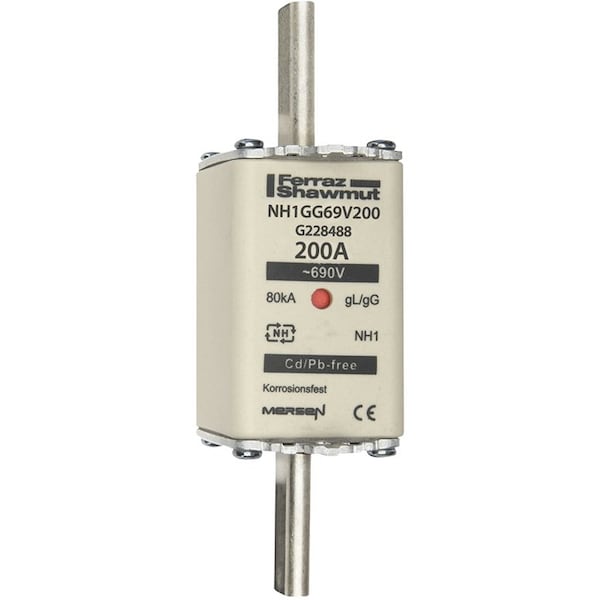

Fuse Link, G22 Series, 200A, Time-Delay, 690V AC, Square
| Item | Fuse Link |
|---|---|
| Series | G22 |
| Amps | 200A |
| Speed | Time-Delay |
| AC Voltage Rating | 690V AC |
| DC Voltage Rating | 400V DC |
| Body Style | Square |
| Visual Indication | Indicating |
| Body Material | Ceramic |
| Length | 5.31 in |
| Fuse Amps | 200 A |
| Fuse Voltage Rating | 690 V |
| Fuse Speed | gG |
| Rated Voltage Ac Iec | 690 V |
| Speed Characteristic | gG |
| Power Dissipation At Rated Current Value | 18 W |
| Body Insulating Material | Ceramic |
| Ampere Rating | 200 A |
| Mounting | Clip |
| Rated Voltage Dc Iec | 400 V |
| Connection Terminal Material | Silver-Plated Copper |
| Package Quantity | 1 |
