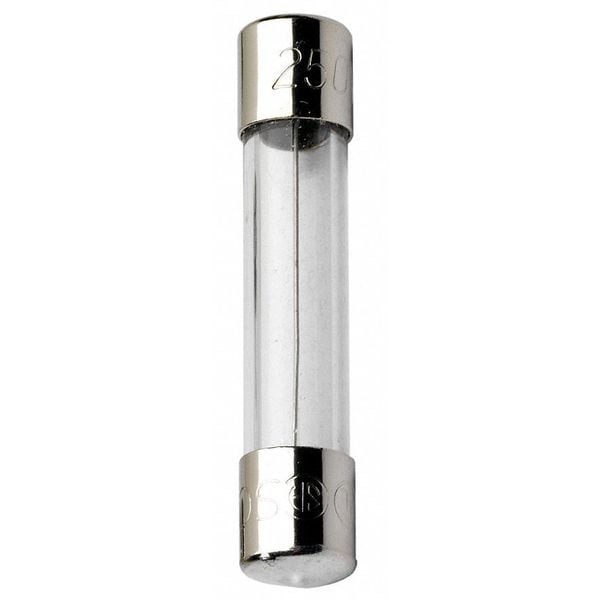

Glass Fuse, GGC Series, Fast-Acting, 15A, 125V AC, 10kA at 125V AC, 5 PK
| Series | GGC |
|---|---|
| Speed | Fast-Acting |
| Amps | 15A |
| AC Voltage Rating | 125V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1-1/2 in |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann AGC, Bussmann MMB, Littelfuse 311, Littelfuse 312, Littelfuse 3AG, Mersen GGC |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | Not Rated |
| Item | Glass Fuse |
| Standards | CSA, UL |
| Equivalent Series | 311, 312, 3AG, AGC, GGC, MMB |
| Element | Single |
| Indicating / Nonindicating | Nonindicating |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Fuse Speed | Fast Acting |
| Ampere Rating | 15 A |
| Mounting | Clip |
| APPROVALS & STANDARDS | 1/10A through 10A, 250VAC, UL Listed and CSA Certified; 12A and 15A, 125VAC, UL Listed and CSA Certified; 20A through 30A, 32VAC |
| APPLICATIONS | Electronic circuits |
| Speed/Characteristic | Fast-Acting |
| Short Description | Fuse GGC - Fast-Acting 125V 15A 6x32mm, 1/4" X 1-1/4" Glass |
| Package Quantity | 5 |
