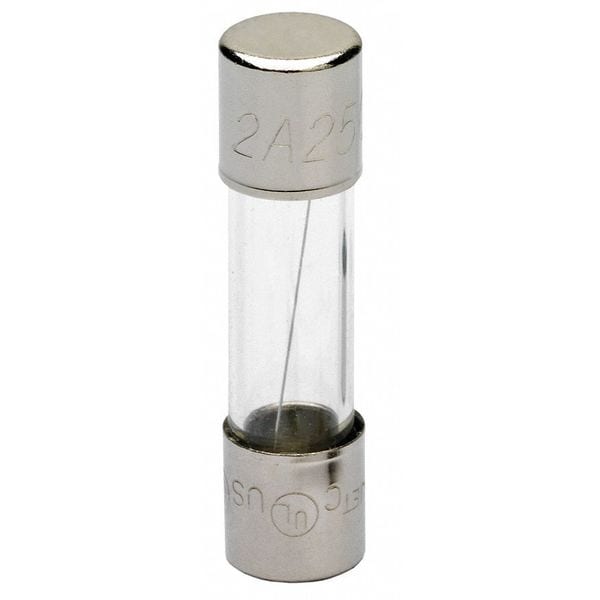

Glass Fuse, GGX Series, Fast-Acting, 2A, 250V AC, 100A at 250V AC, 10kA at 125V AC, 5 PK
| Series | GGX |
|---|---|
| Speed | Fast-Acting |
| Amps | 2A |
| AC Voltage Rating | 250V AC |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 100A at 250V AC, 10kA at 125V AC |
| Body Style | Cylindrical |
| Diameter | 1/4 in |
| Length | 1 in |
| Body Material | Glass |
| Equivalent Brand and Series | Bussmann AGX, Littelfuse 361, Littelfuse 362, Mersen GGX |
| Fits Fuse Block Style | Non-Rejection |
| DC Voltage Rating | Not Rated |
| Item | Glass Fuse |
| Rejection / Nonrejection | Nonrejection |
| Standards | UL |
| Element | Single |
| Equivalent Series | 361, 362, AGX, GGX |
| Mounting | Clip |
| Short Description | Fuse GGX 8AG - Fast-Acting 250V 2A 1/4 X 1 Glass |
| APPROVALS & STANDARDS | 1/2A through 2 1/2A, 250VAC, UL Listed; 3A through 7A, 125V AC, UL Recognized; 8A through 30A, 32V AC, UL Recognized |
| Package Quantity | 5 |
