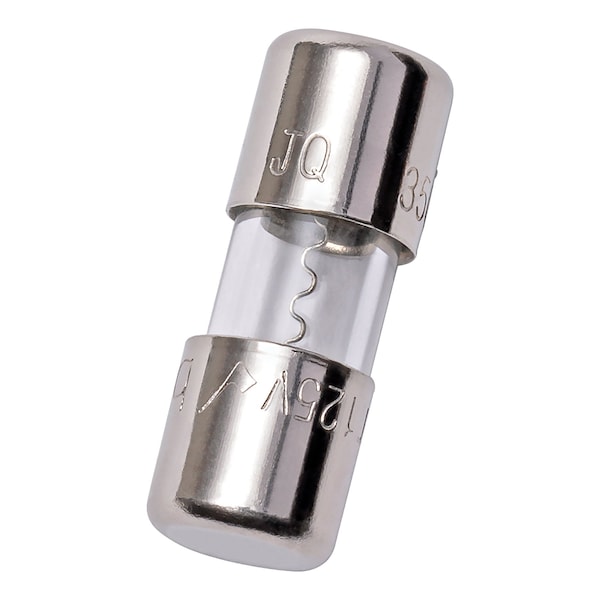

Glass Fuse, SMG Series, Fast-Acting, 3A, 125 to 350V AC
| Series | SMG |
|---|---|
| Speed | Fast-Acting |
| Amps | 3A |
| AC Voltage Rating | 125 to 350V AC |
| Interrupt Rating | 0.035kA, 0.1kA, 10kA at V AC; 0.15kA at V DC; 10, 10kA at 125V AC, 150A at 140V AC |
| Body Style | Cylindrical |
| Diameter | 0.177 in |
| Length | 0.57 in |
| Body Material | Glass |
| Fits Fuse Block Style | Nonrejection |
| DC Voltage Rating | 140 V DC |
| Item | Glass Fuse |
| Standards | UL Certified; CSA Certified |
| Mounting | Clip |
| Connection Material | Nickel-Plated Brass |
| Package Quantity | 1 |
