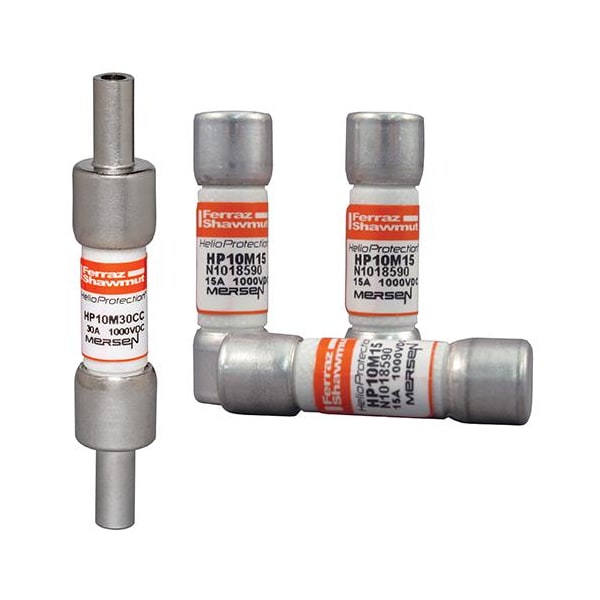

HelioProtection Fuse, HP10M Series, 30A, Fast-Acting, Not Rated, Cylindrical
| Item | HelioProtection Fuse |
|---|---|
| Series | HP10M |
| Amps | 30A |
| Speed | Fast-Acting |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 1000V DC |
| Body Style | Cylindrical |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA |
| Body Material | GMG |
| Diameter | 0.41 in |
| Length | 0.41 in |
| Equivalent Brand and Series | Bussmann PV-F, Littelfuse SPF, Mersen HP10M, SPFS |
| Equivalent Series | PV-F, SPF, HP10M, SPFS |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Speed | gPV |
| Fuse Amps | 30 A |
| Class | G PV |
| Fuse Voltage Rating | 1,000 V |
| Fuse Class | Photovoltaic |
| Mounting | Clip |
| Connection Material | Tin-Plated Copper |
| Storage Temp. Range | -25 to 80 °C |
| Body/Insulating Material | GMG |
| Ampere Rating | 30 A |
| APPROVALS & STANDARDS | UL Listed to Standard UL2579 File E333668; CSA Component Certified C22.2; IEC 60269-6 Approved (CB Tested) |
| Rated voltage DC UL | 1,000 V |
| Connection/Terminal Material | Tin-Plated Copper |
| APPLICATIONS | All photovoltaic applications; PV string/array level protection; Combiner box applications; In-line PV module protection; Inverters; Battery charge controllers |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Frequency | 50/60 Hz |
| Connection/Terminal Type | Ferrule |
| Package Quantity | 1 |
