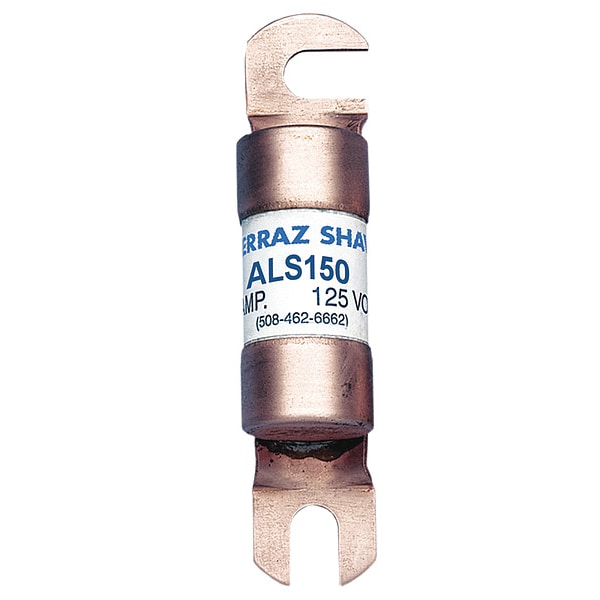

Limiter Fuse, ALS Series, 150A, Fast-Acting, 125V AC, Bolt-On
| Item | Limiter Fuse |
|---|---|
| Series | ALS |
| Amps | 150A |
| Speed | Fast-Acting |
| AC Voltage Rating | 125V AC |
| DC Voltage Rating | 125V DC |
| Body Style | Bolt-On |
| Visual Indication | Non-Indicating |
| Interrupt Rating | 10kA at 125V DC, 10kA at 125V AC |
| Body Material | Polytube |
| Diameter | 1.12 in |
| Length | 4-3/4 in |
| Equivalent Brand and Series | Mersen ALS |
| Equivalent Series | ALS |
| Fits Fuse Block Style | Non-Rejection |
| Fuse Amps | 150 A |
| Indicating / Nonindicating | Nonindicating |
| Standards | UL file E60314, UL Recognized Component |
| Element | Single |
| Fuse Voltage Rating | 125VAC/DC |
| Fuse Speed | Fast Acting |
| Width | Not Applicable |
| Mounting | Bolted |
| APPROVALS & STANDARDS | UL recognized components (All Products) File E60314 |
| Frequency | 50/60 Hz |
| Rated voltage DC UL | 125 V |
| APPLICATIONS | Forklift trucks; Battery hand trucks; Motorized work platforms; Battery systems |
| Connection/Terminal Material | Copper |
| Ampere Rating | 150 A |
| Connection/Terminal Type | Blade |
| Body/Insulating Material | PolyTube |
| AC Max I.R./Breaking Capacity: I1 | 10 kA |
| Rated voltage AC UL | 125 V |
| Package Quantity | 1 |
