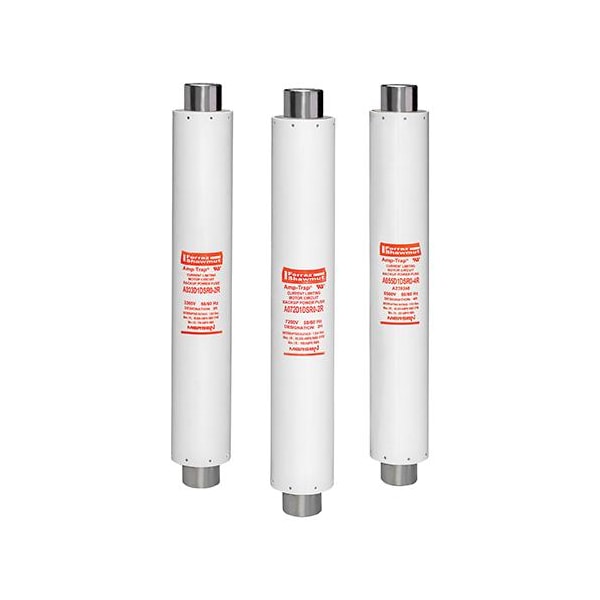

Medium-Voltage Fuse, A055 Series, R-Rated, 5500V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | A055 |
| Speed | R-Rated |
| AC Voltage Rating | 5500V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 100kA |
| Body Material | GMG |
| Diameter | 2.88 in |
| Length | 20 in |
| Fuse Speed | R-Rated |
| Class | R-Rated |
| Fuse Voltage Rating | 5,500 V |
| Standards | ANSI DIN 442 |
| Connection Material | Brass |
| Operating Temp. Range | 80 °C |
| Storage Temp. Range | -25 to 80 °C |
| Connection Type | Clip |
| Mounting | Clip |
| Rated voltage AC UL | 5,500 V |
| APPLICATIONS | Short circuit protection of medium voltage motors and motor controllers |
| Body/Insulating Material | GMG |
| Connection/Terminal Type | Clip |
| AC Max I.R./Breaking Capacity: I1 | 100 kA |
| APPROVALS & STANDARDS | UL recognized component File E93367 |
| Connection/Terminal Material | Brass |
| Package Quantity | 1 |
