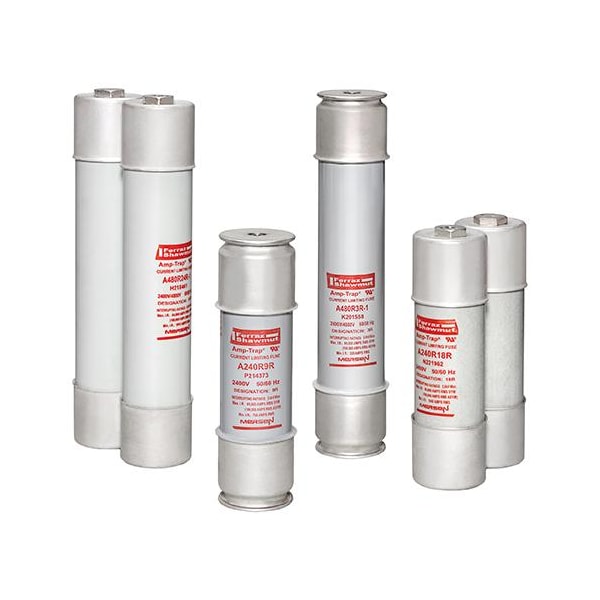

Medium-Voltage Fuse, A072 Series, R-Rated, 7200V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | A072 |
| Speed | R-Rated |
| AC Voltage Rating | 7200V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 50kA |
| Body Material | GMG |
| Diameter | 3 in |
| Length | 15.88 in |
| Fuse Speed | R-Rated |
| Fuse Voltage Rating | 7,200 V |
| Class | R-Rated |
| Storage Temp. Range | -25 to 80 °C |
| Connection Type | Ferrule |
| Connection Material | Silver-Plated Copper |
| Mounting | Clip |
| Operating Temp. Range | 80 °C |
| APPLICATIONS | Short circuit protection of medium voltage motors and motor controllers |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Frequency | 50/60 Hz |
| Connection/Terminal Material | Silver-Plated Copper |
| APPROVALS & STANDARDS | Amp-Trap: UL File E93367; 9F60: UL File E191980 |
| Body/Insulating Material | GMG |
| Rated voltage AC UL | 7,200 V |
| Connection/Terminal Type | Ferrule |
| Package Quantity | 1 |
