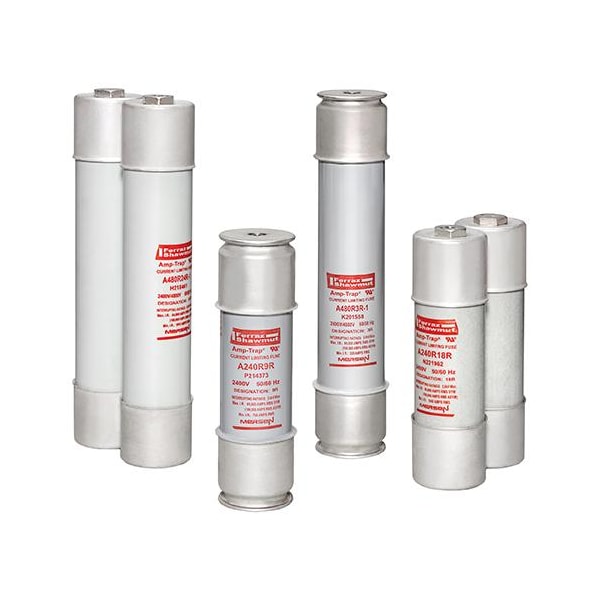

Medium-Voltage Fuse, A480R Series, R-Rated, 4800V AC, Cylindrical
| Item | Medium-Voltage Fuse |
|---|---|
| Series | A480R |
| Speed | R-Rated |
| AC Voltage Rating | 4800V AC |
| DC Voltage Rating | Not Rated |
| Body Style | Cylindrical |
| Visual Indication | Indicating |
| Interrupt Rating | 65kA |
| Body Material | Epoxy |
| Diameter | 3 in |
| Length | 15.88 in |
| Equivalent Brand and Series | Bussmann JCL, Mersen A480R |
| Equivalent Series | A480R, JCL |
| Fuse Voltage Rating | 4,800 V |
| Fuse Speed | R-Rated |
| Class | R-Rated |
| Mounting | Clip |
| Connection Material | Silver-Plated Copper |
| Operating Temp. Range | 80 °C |
| Storage Temp. Range | -25 to 80 °C |
| Connection Type | Ferrule |
| Rated voltage AC UL | 4,800 V |
| Body/Insulating Material | Epoxy |
| Frequency | 50/60 Hz |
| Connection/Terminal Type | Ferrule |
| Connection/Terminal Material | Silver-Plated Copper |
| AC Max I.R./Breaking Capacity: I1 | 65 kA |
| APPROVALS & STANDARDS | Amp-Trap: UL File E93367; 9F60: UL File E191980 |
| APPLICATIONS | Short circuit protection of medium voltage motors and motor controllers |
| Product Height | 3 in |
| Product Width | 3 in |
| Package Quantity | 1 |
